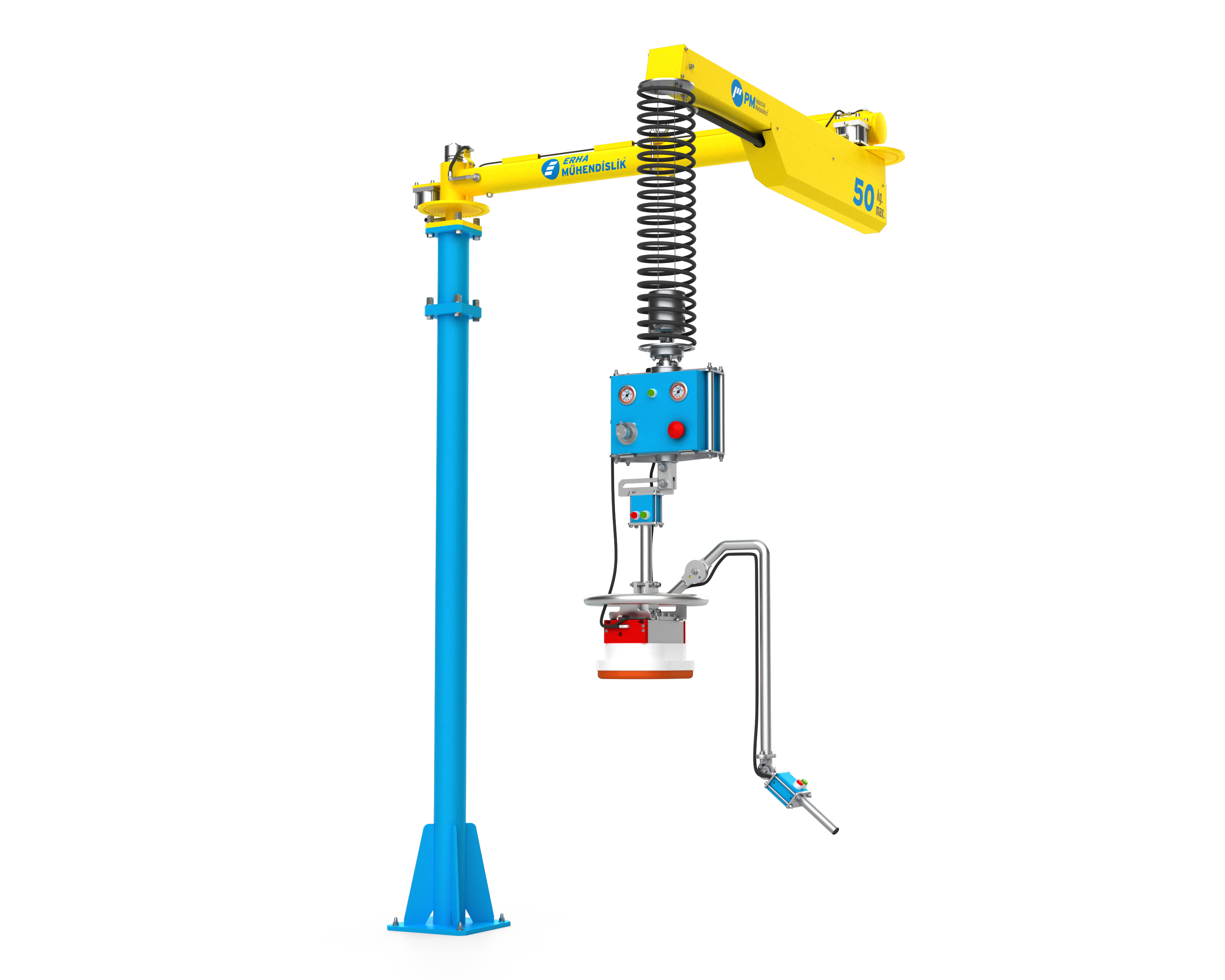

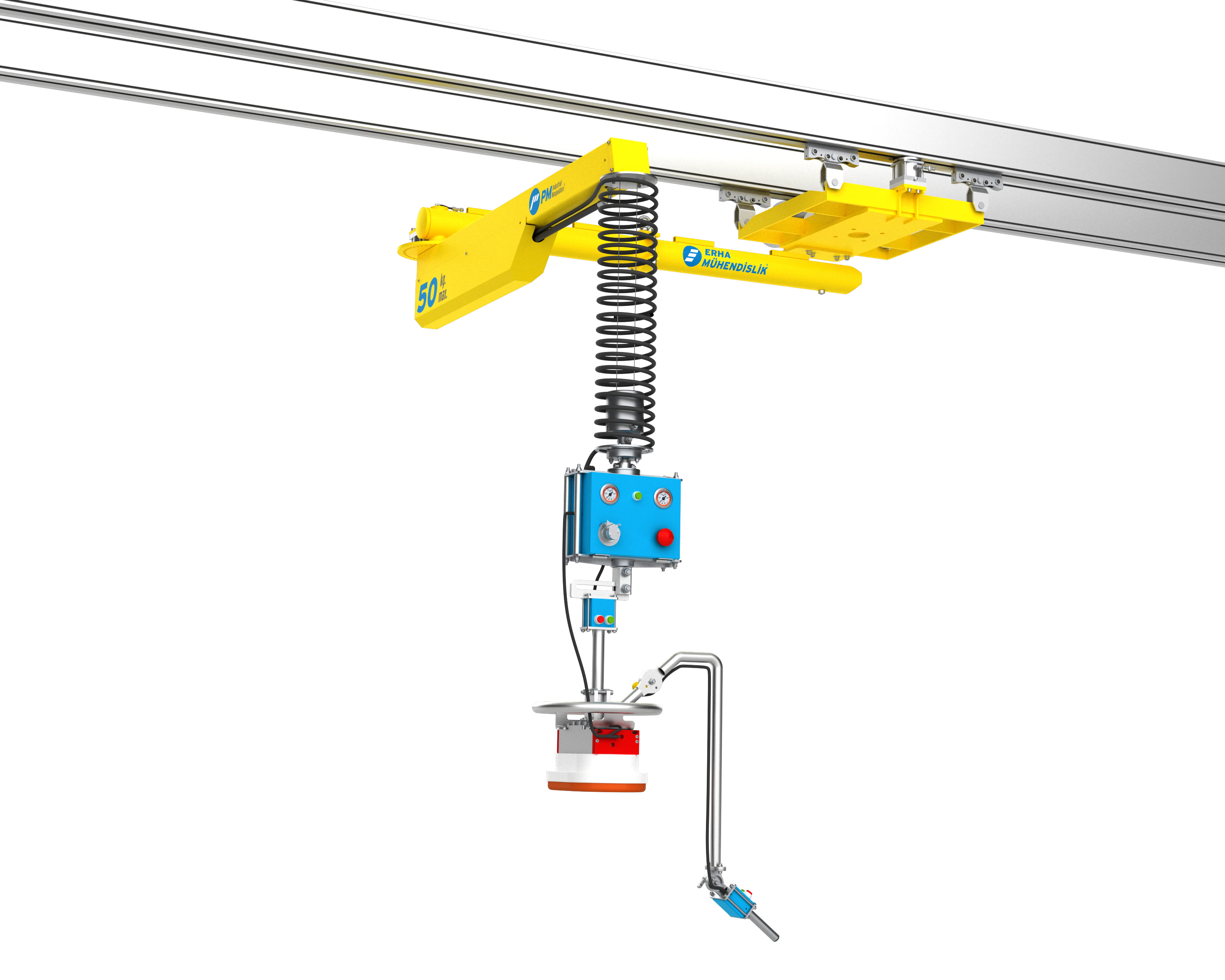

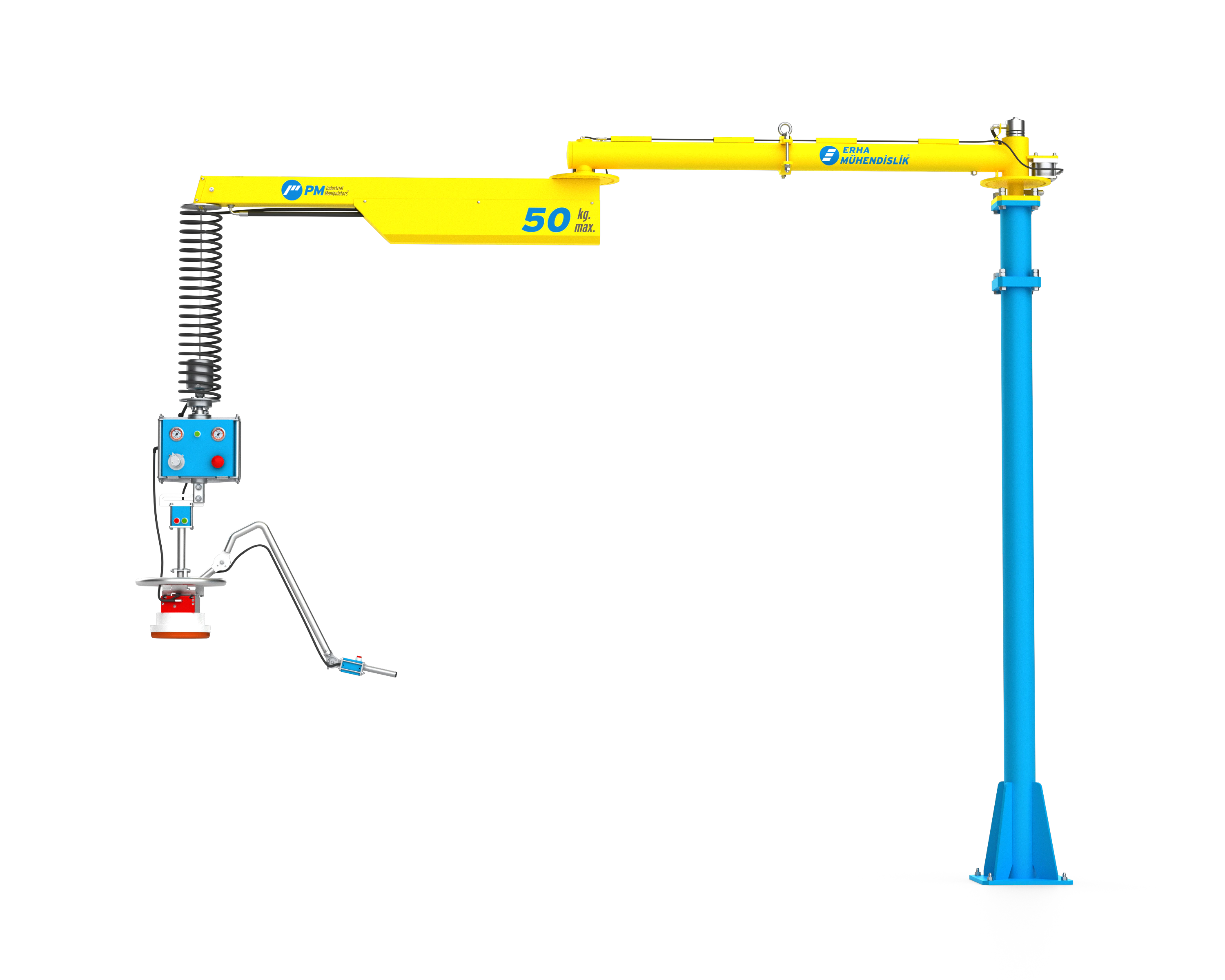

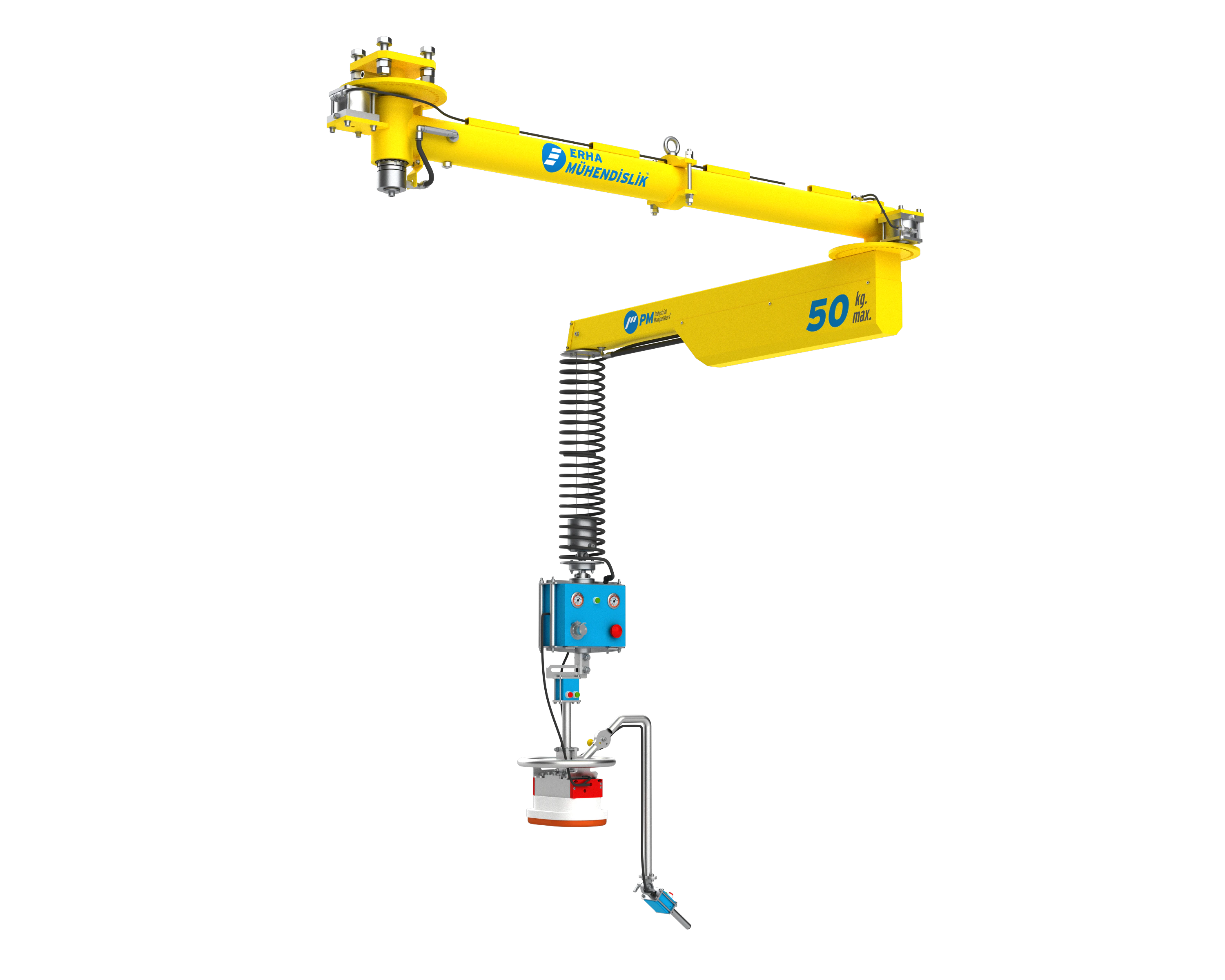

What is the Vacful Vacuum Handling Manipulator?
Vacful is an application focused manipulator solution developed by PM Manipulators as part of the Plug and Play product family for vacuum handling operations.
It is designed for ergonomic, safe and controlled handling of flat or suitable surface loads up to 100 kg that can be gripped by vacuum.
With its vacuum gripping system, Vacful helps operators lift, move and position boxes, panels, sheets, covers, packaged products, metal sheets and other flat surface components with reduced physical effort.
The pneumatic manipulator structure and vacuum gripping system work together to provide secure load holding, controlled movement and ergonomic handling during repetitive industrial operations.
Vacful is especially suitable for production lines where flat surface components are handled frequently, including packaging operations, panel handling applications, white goods production, metal sheet handling and general industrial material transfer processes.
Which Problems Does Vacful Solve?
Manual handling of flat surface or vacuum grippable components may create operator fatigue, repetitive lifting strain, surface scratching risk, positioning errors, cycle time loss, difficulty in controlling wide surface parts and reduced production efficiency.
Vacful reduces these problems by combining vacuum gripping technology with an ergonomic manipulator structure.
Instead of directly holding the load by hand, the operator grips the component through the vacuum system and guides it with manipulator support.
This structure provides significant advantages for sensitive surfaces, wide surface components and repetitive handling applications.
Why Use a Vacuum Handling Manipulator?
Vacuum handling manipulators reduce the need for mechanical clamping on loads that can be held from the surface. This provides controlled contact with the product surface and supports safer load guidance.
The Vacful system offers:
• vacuum handling capacity up to 100 kg
• controlled gripping for flat surface loads
• ergonomic operator support
• reduced surface damage risk
• improved efficiency in repetitive handling operations
• precise positioning
• easy integration into production lines
• process specific vacuum pad and end effector design
• adaptable structure for different surface types and component geometries
Which Industries Use Vacful?
Vacful can be used across many industrial sectors where vacuum grippable loads must be handled ergonomically and precisely.
Main application areas include:
• packaging operations
• white goods production
• metal sheet and plate handling
• panel handling applications
• box and packaged product handling
• plastic component handling
• automotive component handling
• general industrial manufacturing environments
The system can be customized with vacuum pads, vacuum grippers, multiple vacuum points or process specific end effectors according to the surface structure, weight, porosity, center of gravity, handling direction and positioning requirements of the load.
Recommended Applications
Flat surface component handling
Suitable for controlled handling of sheets, panels, covers, metal plates or other flat surface components.
Packaging and box handling
Can be used for ergonomic lifting and transfer of boxes, packaged products and packaging materials under suitable surface conditions.
White goods component handling
Supports controlled handling of panels, covers and body components used in white goods production.
Metal sheet and plate handling
Helps move vacuum suitable metal sheets or plates safely across production areas.
Sensitive surface product handling
Supports reduced surface damage risk in applications where mechanical clamping marks are not desired.
Technical Configuration
Vacful can be configured according to load weight, surface type, vacuum holding area, component geometry, working radius, vertical movement requirement, workstation layout and production line structure.
Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.
Depending on the application, Vacful can be evaluated with single or multiple vacuum grippers, special vacuum pads, safety valves, vacuum monitoring systems and process specific handling attachments.
Safety, CE Compliance and ATEX Evaluation
Safety evaluation in Vacful applications is based on load weight, surface structure, vacuum holding safety, center of gravity, operator position, working area and cycle frequency.
CE compliance, risk analysis, operator safety and safe load handling principles are key parts of the PM Manipulators engineering process.
In painting, chemical, solvent, dusty production areas or special process environments where there may be an explosive atmosphere risk, ATEX requirements are evaluated on a project specific basis. In these applications, the vacuum system, control structure, gripper design and working environment risk classification are analyzed together.
Product Liability Insurance
PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.
This assurance strengthens PM Manipulators’ manufacturer identity in vacuum handling applications by supporting safe gripping, engineering responsibility, operator safety and customer confidence.
What Makes PM Manipulators Different?
PM Manipulators evaluates Vacful applications not only according to load weight, but also according to surface structure, vacuum holding safety, component geometry, center of gravity, handling direction, cycle frequency and operator ergonomics.
PM Manipulators provides strong engineering capability in:
• vacuum manipulator engineering
• special vacuum gripper and vacuum pad design
• load surface and gripping safety analysis
• ergonomic handling system development
• CE compliance and risk assessment
• project specific evaluation for ATEX required applications
• safety focused approach supported by product liability insurance
• production line specific integration
• more than 5000 completed manipulator applications
With this approach, Vacful provides a strong PM Plug and Play solution for safe, ergonomic and process oriented handling of flat surface loads.
