What is the Hercules Pneumatic Manipulator?

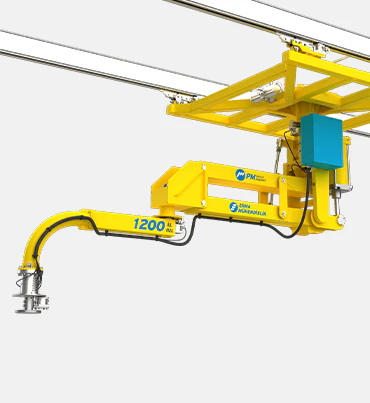

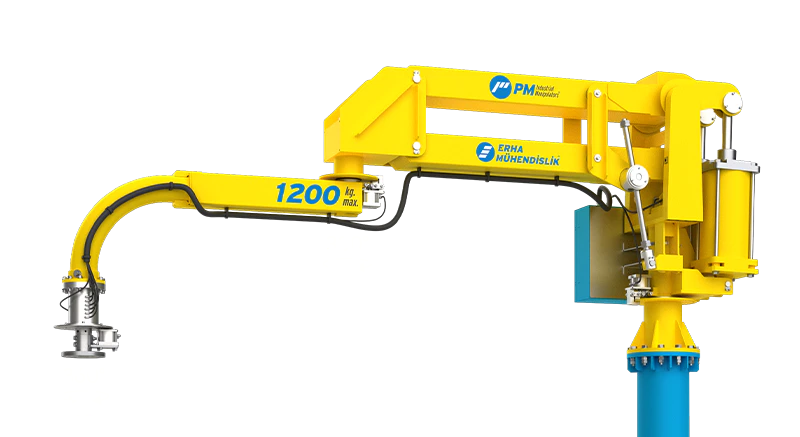

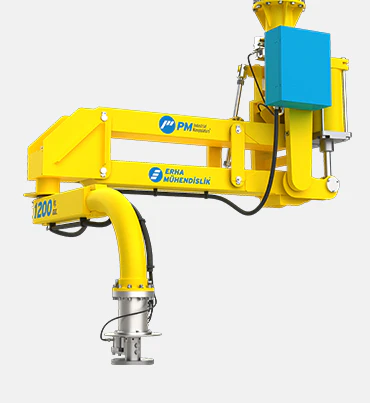

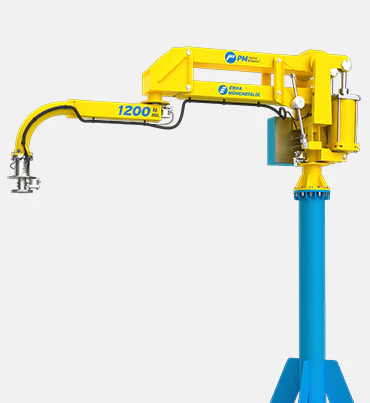

Hercules is a heavy duty rigid arm pneumatic manipulator developed by PM Manipulators for ergonomic, safe and controlled handling of loads up to 1200 kg.

It is designed for demanding industrial applications where very heavy components must be moved, held, positioned or rotated with high stability.

The rigid arm structure provides strong load control, while pneumatic balancing supports the operator during heavy load movement and positioning operations.

Hercules is suitable for heavy industrial components, defense industry parts, large machined parts, casting components, heavy assembly operations and production environments requiring high load capacity.

Which Problems Does Hercules Solve?

Very heavy industrial loads can create serious ergonomic, safety and production challenges.

Manual handling is not possible, and unsuitable lifting systems may create uncontrolled movement, positioning errors, workplace safety risks, crane dependency, slow cycle times and reduced process control.

Hercules reduces these problems by providing stable rigid arm control, pneumatic balancing and custom engineered gripping solutions.

Why Use Hercules?

Hercules is designed for heavy duty handling applications requiring high load capacity and controlled movement.

The Hercules system offers:

• load handling capacity up to 1200 kg
• heavy duty rigid arm structure
• stable load control
• precise positioning support
• ergonomic operator assistance
• reduced crane dependency
• compatibility with special grippers and end effectors
• optional rotation and orientation solutions
• safe handling for demanding industrial applications

Which Industries Use Hercules?

Hercules can be used in sectors where very heavy components must be handled safely and precisely.

Main application areas include:

• defense industry applications
• heavy machinery manufacturing
• automotive heavy component handling
• casting component handling
• metal processing
• large machined part handling
• industrial assembly operations
• heavy production line handling

The system can be customized with mechanical grippers, pneumatic grippers, rotation systems and application specific end effectors according to load geometry and safety requirements.

Technical Configuration

Hercules can be configured according to load weight, working radius, vertical movement requirement, center of gravity, gripping method, rotation requirement, mounting structure and production process.

Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.

Safety, CE Compliance and ATEX Evaluation

Safety evaluation in Hercules applications is based on heavy load weight, center of gravity, gripping safety, rigid arm movement, rotation requirement, operator position and working environment.

CE compliance, risk assessment, safe load handling and operator safety are essential parts of the PM Manipulators engineering process.

ATEX requirements are evaluated on a project specific basis when the application is located in hazardous or potentially explosive environments.

Product Liability Insurance

PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.

This assurance supports PM Manipulators’ engineering responsibility in heavy duty manipulator applications.

What Makes PM Manipulators Different?

PM Manipulators evaluates Hercules applications according to load geometry, center of gravity, gripper design, movement requirement, operator safety and production process.

With more than 5000 completed manipulator applications, PM Manipulators provides heavy duty handling systems supported by custom engineering, CE compliance, risk assessment and strong manufacturing capability.
