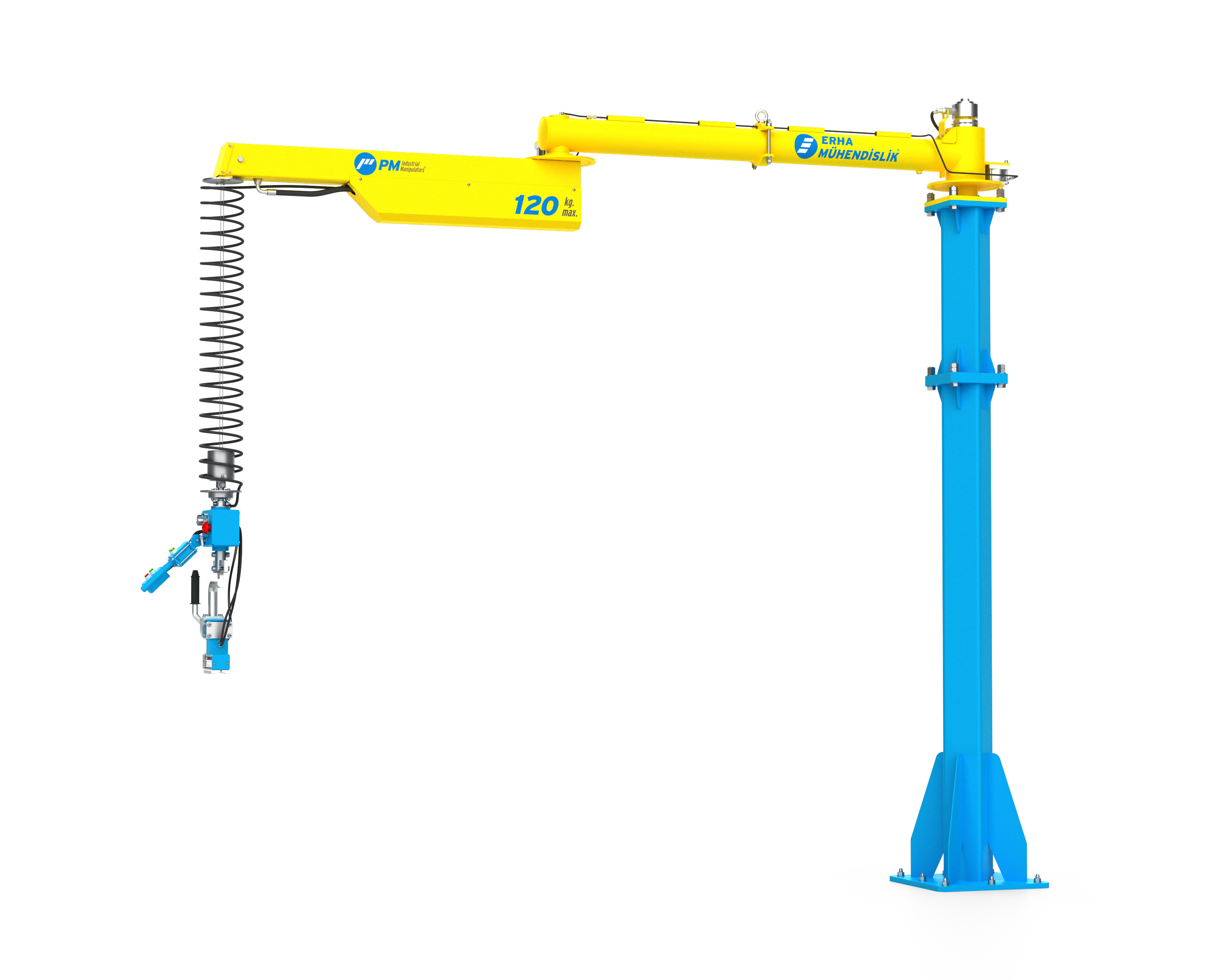

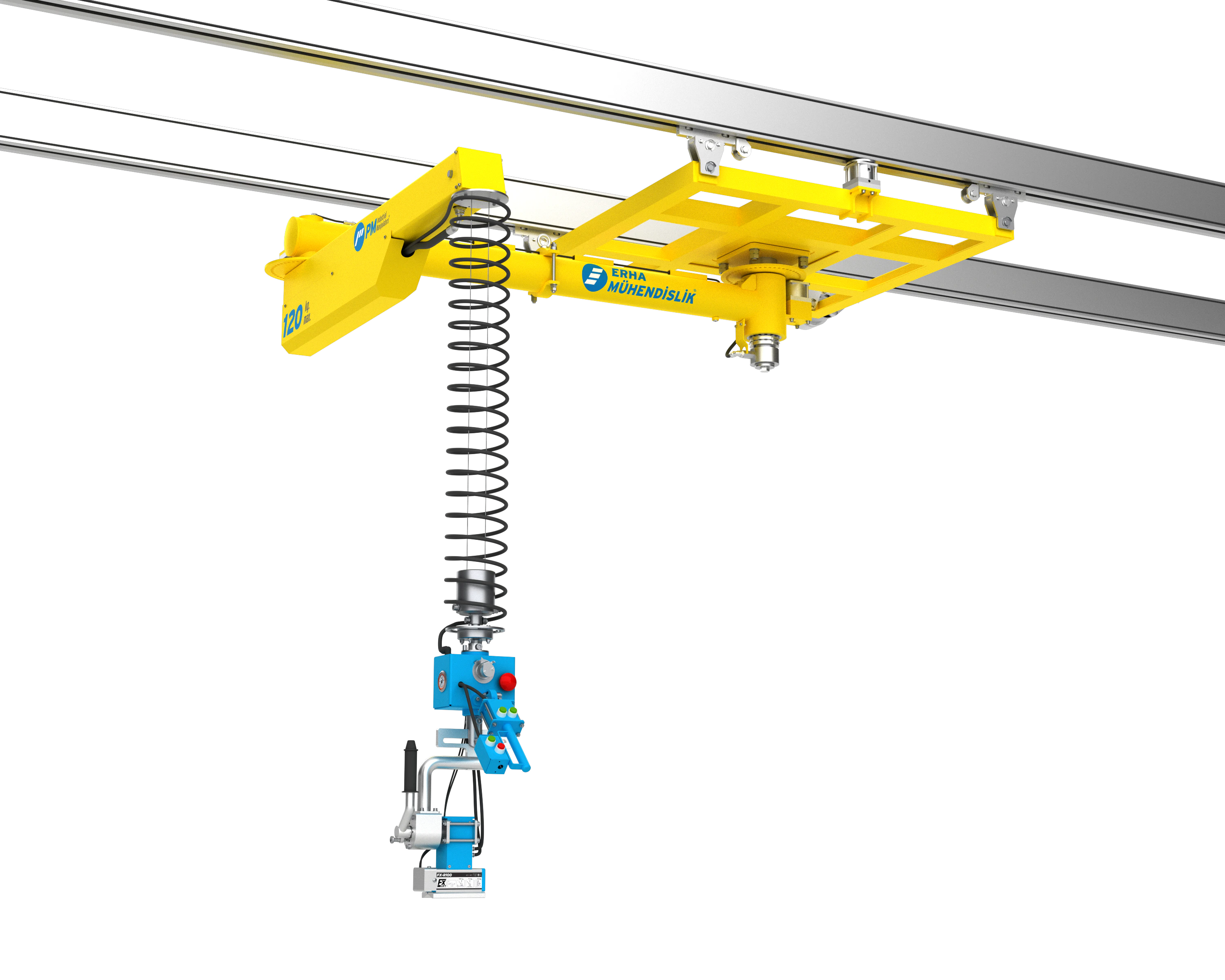

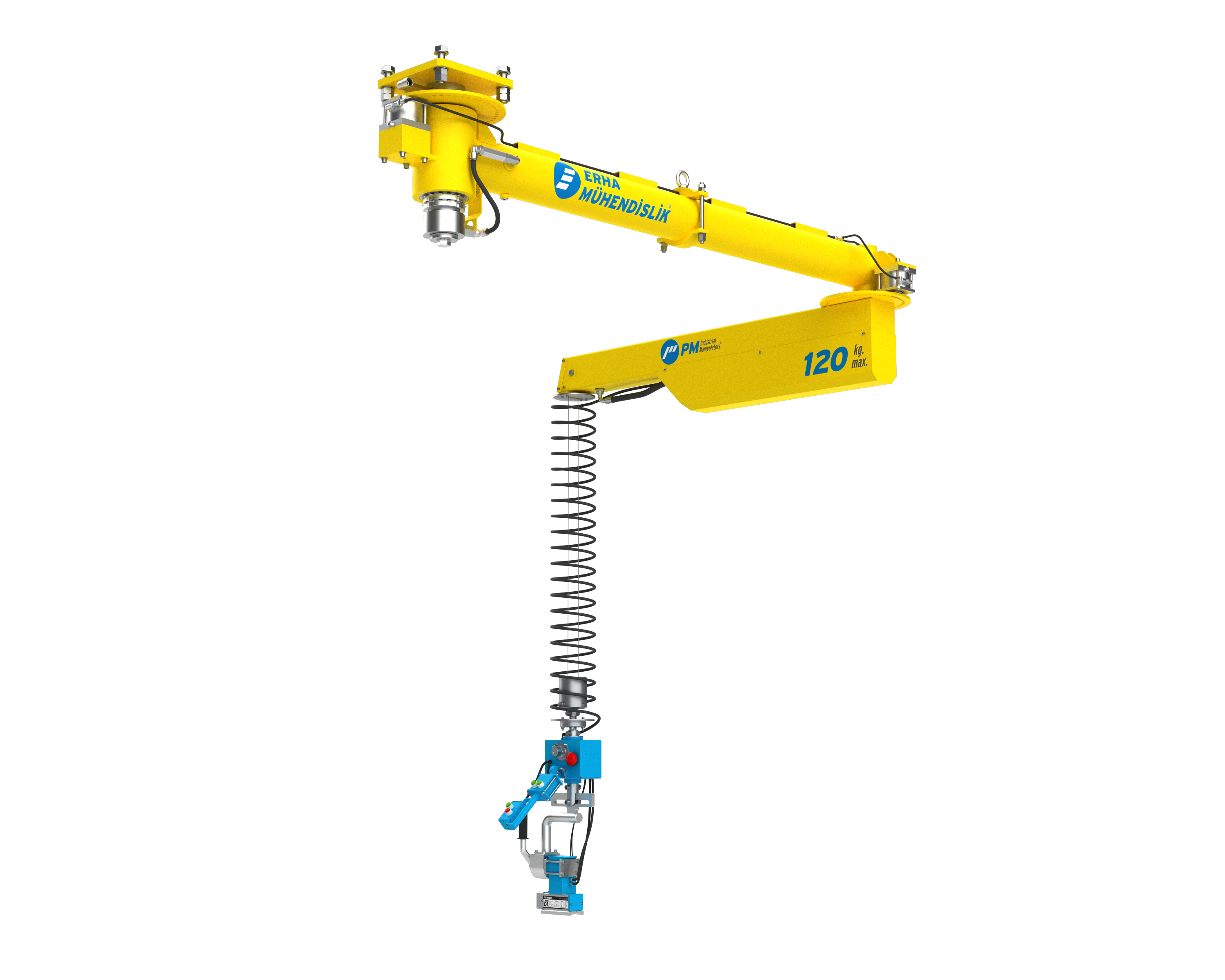

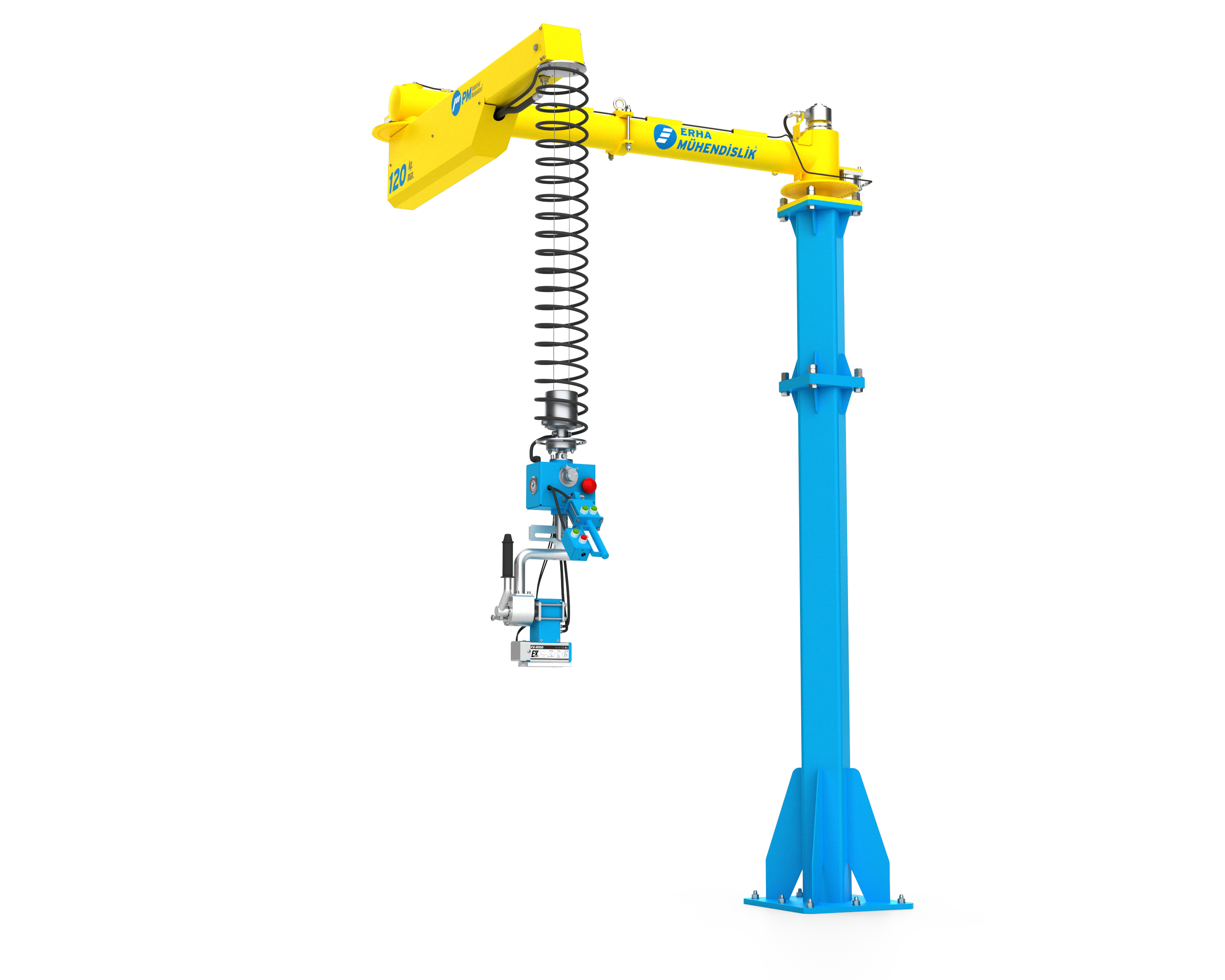

What is the Magnetful Magnetic Metal Handling Manipulator?

Magnetful is an application focused manipulator solution developed by PM Manipulators as part of the Plug and Play product family for handling metal components with magnetic gripping technology.

It is designed for ergonomic, safe and controlled handling of ferromagnetic metal parts, metal sheets, metal plates, machined components and suitable metal surface loads up to 100 kg.

The magnetic gripper system provides fast gripping and release advantages on suitable metal surfaces.

With manipulator support, the operator can lift, move and precisely position metal loads with reduced physical effort.

Magnetful is especially suitable for sheet metal handling, metal component production, automotive components, welded parts, machined metal products and general metal processing lines.

Which Problems Does Magnetful Solve?

Manual or uncontrolled handling of metal components may create operator fatigue, sharp edge safety risks, difficulty in controlling heavy metal parts, surface damage or deformation risk, positioning errors, production line slowdowns, repetitive lifting strain and safety risks caused by unsuitable gripping points.

Magnetful is developed to reduce these problems through magnetic gripping technology and manipulator support.

Metal components are gripped with the magnetic gripper under suitable surface and material conditions and guided more precisely by the operator.

Why Use a Magnetic Metal Handling Manipulator?

Magnetic metal handling manipulators provide advantages in applications where ferromagnetic parts must be handled quickly, safely and ergonomically.

The Magnetful system offers:

• magnetic metal handling capacity up to 100 kg
• fast gripping for sheet, plate and metal components
• reduced need for mechanical clamping
• ergonomic operator support
• safer handling support for sharp edged parts
• precise positioning
• fast pick and release in production lines
• special magnetic gripper integration
• suitable structure for metal processing lines

Which Industries Use Magnetful?

Magnetful can be used in many sectors where magnetically grippable metal parts are handled.

Main application areas include:

• metal processing
• sheet metal production
• automotive component production
• welded part handling
• machined metal part handling
• machine manufacturing
• white goods metal components
• general industrial metal handling applications

The system can be customized with a special magnetic gripper and manipulator configuration according to material type, magnetic gripping suitability, surface structure, center of gravity, sheet thickness, component geometry and positioning requirement.

Recommended Applications

Sheet metal handling
Suitable for controlled handling of metal sheets or metal plates in production lines.

Automotive metal components
Supports ergonomic lifting and positioning of metal parts used in automotive production.

Welded part handling
Can be used for moving welded metal components between workstations.

Machined metal part handling
Helps safely transfer metal components after CNC machining operations.

Sharp edged metal parts
Supports safer handling by reducing direct operator contact with sharp edged components.

Technical Configuration

Magnetful can be configured according to load weight, material type, magnetic gripping suitability, sheet thickness, surface structure, center of gravity, working radius, vertical movement requirement and production line structure.

Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.

Depending on the application, Magnetful can be evaluated with magnetic grippers, safety mechanisms, pneumatic support systems, special grippers or process specific metal handling attachments.

Safety, CE Compliance and ATEX Evaluation

Safety evaluation in Magnetful applications is based on magnetic gripping suitability, metal surface structure, sheet thickness, load weight, center of gravity, gripping safety, operator position and working area.

CE compliance, risk analysis, safe load handling principles and operator safety are key parts of the PM Manipulators engineering process.

In painting, chemical, solvent, dusty metal processing or special process environments where there may be an explosive atmosphere risk, ATEX requirements are evaluated on a project specific basis. In magnetic handling applications, ATEX evaluation is made according to working environment risk classification, gripper system, control structure and process requirements.

Product Liability Insurance

PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.

This assurance supports PM Manipulators’ responsibility focused engineering approach in magnetic metal handling applications with regard to secure gripping, operator safety, process reliability and customer confidence.

What Makes PM Manipulators Different?

PM Manipulators evaluates Magnetful applications not only according to load weight, but also according to metal material type, magnetic gripping suitability, sheet thickness, surface condition, center of gravity, gripping safety and operator ergonomics.

PM Manipulators provides strong engineering capability in:

• magnetic metal handling manipulator engineering
• special magnetic gripper design
• metal surface and magnetic gripping analysis
• safety evaluation for sharp edged components
• CE compliance and risk assessment
• project specific evaluation for ATEX required applications
• safety focused approach supported by product liability insurance
• production line specific integration
• more than 5000 completed manipulator applications

With this approach, Magnetful is positioned as the magnetic metal handling solution of the PM Plug and Play product family for safe, ergonomic and process oriented handling of metal components.
