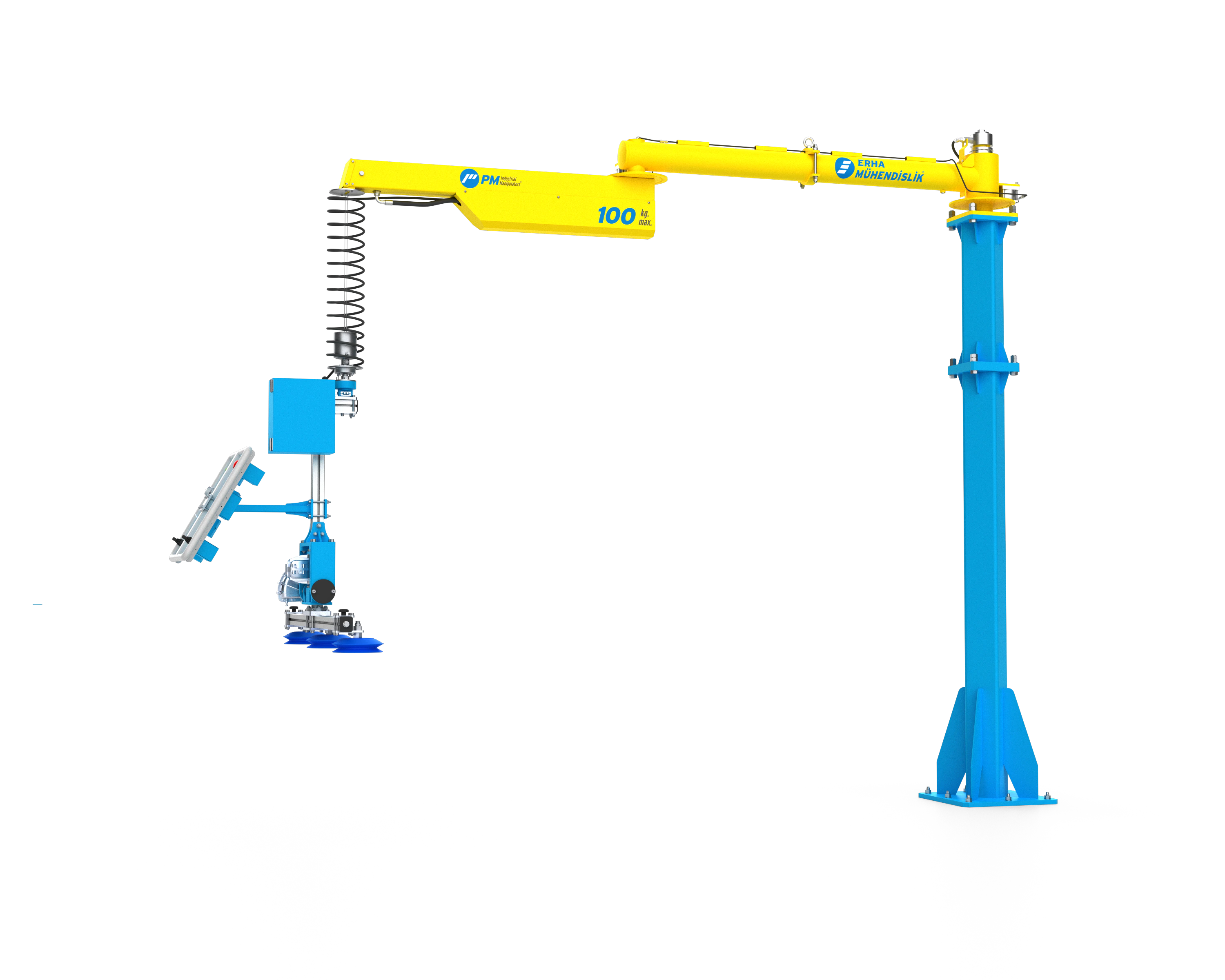

What is the Panelful and Glassful Panel Glass Handling Manipulator?

Panelful and Glassful are application focused manipulator solutions within the PM Manipulators Plug and Play product family, developed for ergonomic, safe and controlled handling of panels, glass, sheets and wide surface sensitive components.

This combined product page brings panel handling and glass handling applications together under the same technical approach. In both applications, wide surface geometry, surface sensitivity, center of gravity, gripping point, vacuum holding safety, positioning accuracy and operator ergonomics must be evaluated together.

Panelful is used for handling panels, sheets, sheet metal panels, wooden panels, composite panels, covers, body parts and similar wide surface loads.

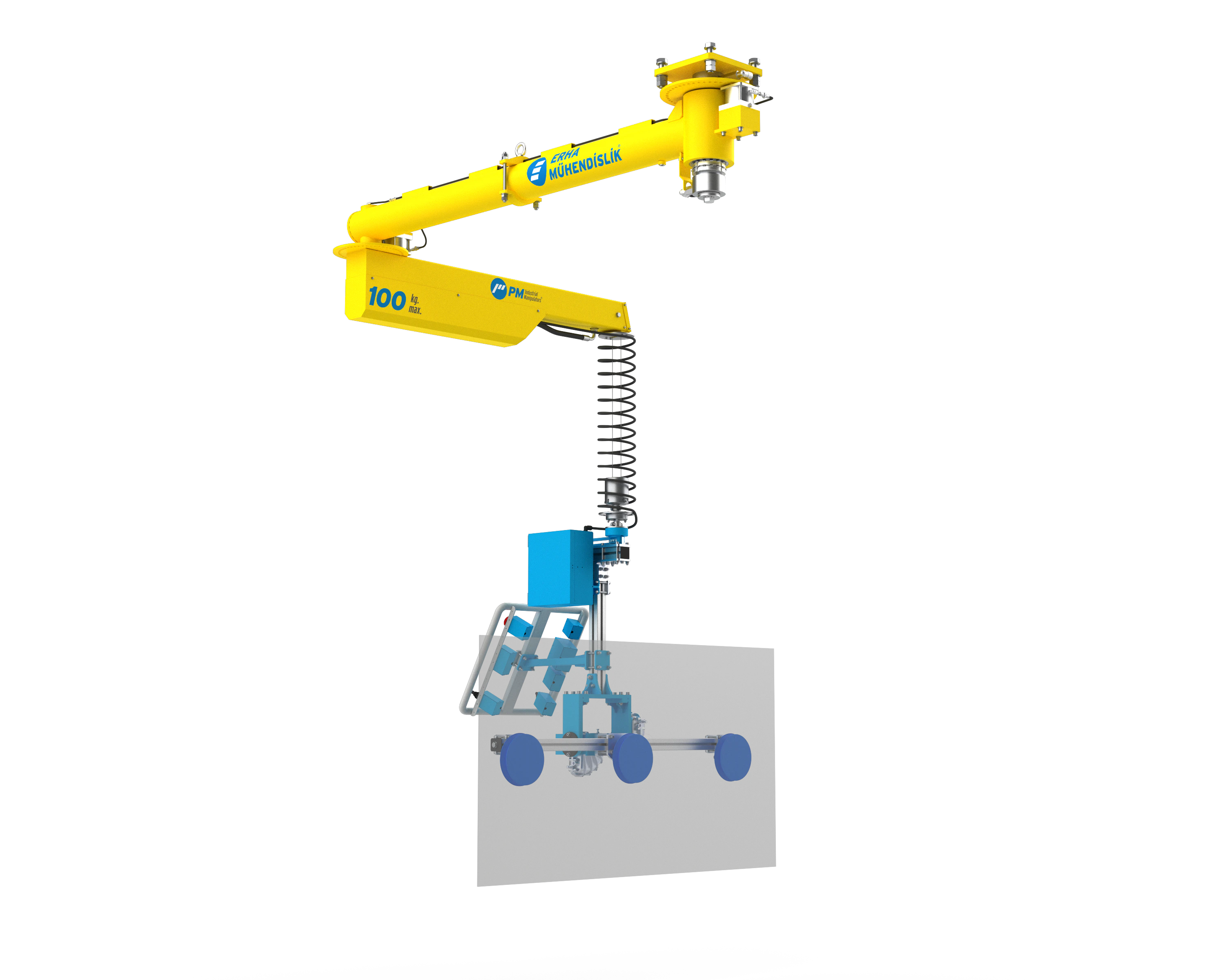

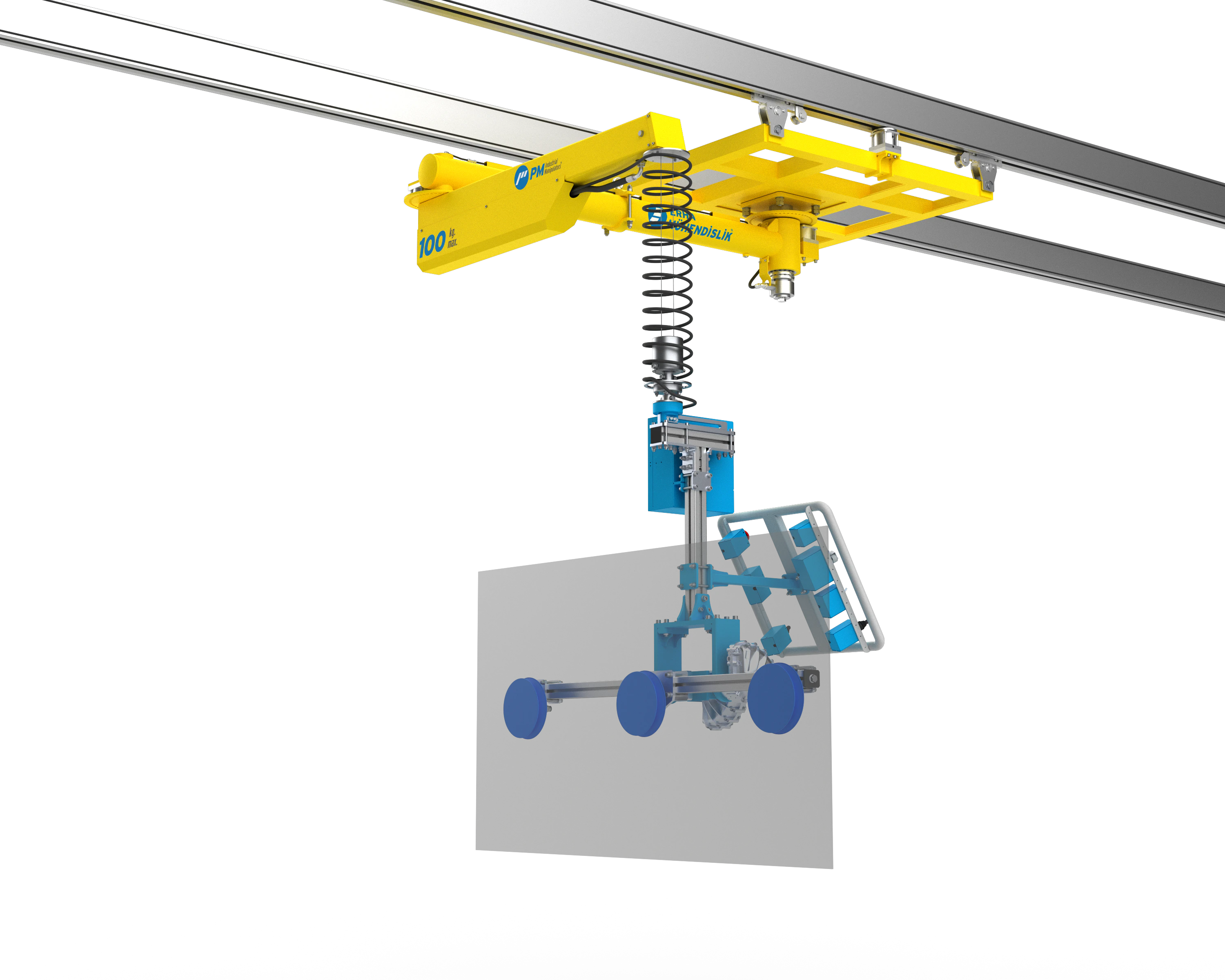

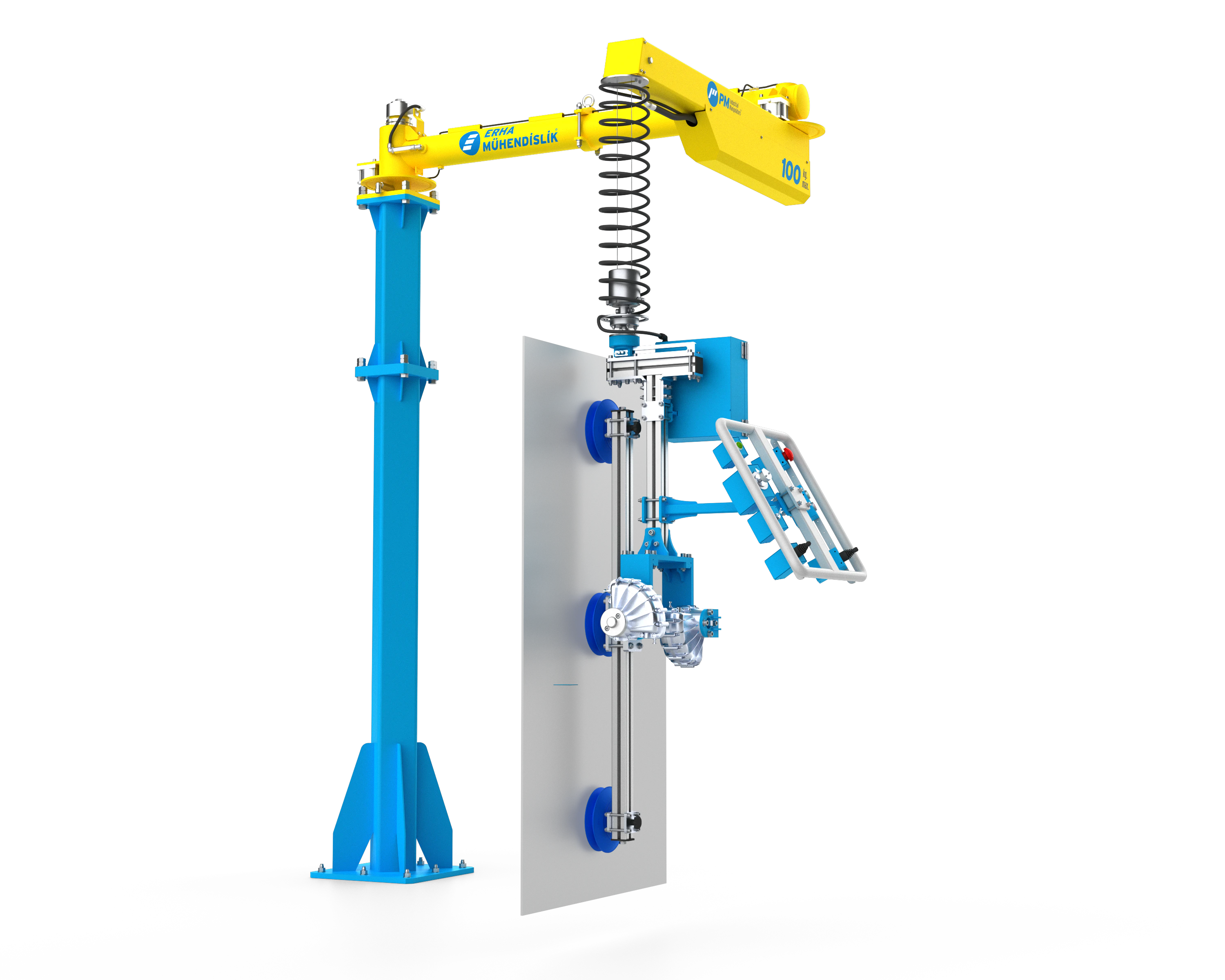

Glassful is developed for safe handling of glass sheets, window glass, flat glass surfaces, white goods glass components, automotive glass parts and sensitive glass surfaces.

Both solutions can be used for lifting, transferring, guiding and precisely positioning suitable surface loads up to 100 kg.

Which Problems Do Panelful and Glassful Solve?

Manual handling of panel and glass components may create operator fatigue, surface scratches, breakage risk, positioning errors, assembly alignment problems, dependency on two operators, workplace safety risks and reduced production efficiency.

Wide surface parts create handling risks not only because of their weight, but also because of their geometry and difficulty of control during movement.

In glass applications, breakage and scratching risks are critical. In panel applications, surface damage, bending, alignment and assembly position may become more important.

Panelful and Glassful solutions reduce these problems through special gripper systems and pneumatic manipulator support. Instead of carrying the load directly by hand, the operator guides, lifts and positions the load with manipulator assistance.

Why Use a Panel and Glass Handling Manipulator?

Panel and glass handling manipulators allow wide surface and sensitive components to be handled more safely, ergonomically and precisely.

The Panelful and Glassful system offers:

• handling capacity up to 100 kg for panels, glass and wide surface components
• ergonomic operator support
• controlled gripping on sensitive surfaces
• reduced surface scratching and damage risk
• reduced breakage risk in glass handling applications
• more balanced guidance of wide surface components
• more controlled handling with a single operator
• precise positioning and alignment support
• production line specific gripper and end effector design
• vacuum, mechanical or process oriented gripping options

Which Industries Use Panelful and Glassful?

Panelful and Glassful can be used in many industrial production areas where panels, glass, sheets and wide surface parts must be handled safely and precisely.

Main application areas include:

• glass production
• window and frame manufacturing
• white goods production
• automotive glass and panel applications
• furniture manufacturing
• wooden panel production
• sheet metal and metal plate handling
• composite panel applications
• cover and body part handling
• sensitive surface product handling
• general industrial assembly lines

The system can be customized according to load size, weight, surface structure, vacuum holding area, center of gravity, gripping point, handling direction, rotation requirement and assembly position.

Recommended Applications

Panel handling applications

Suitable for ergonomic handling of wooden panels, composite panels, sheet metal panels, covers, body parts and similar wide surface components.

Glass sheet handling

Supports controlled handling of flat glass surfaces during production, assembly or transfer processes.

White goods panel and glass components

Can be used for handling oven glass, door glass, side panels, body panels, covers and similar white goods components.

Automotive glass and panel parts

Supports precise positioning of glass surfaces, panel parts and sensitive surface components used in automotive production.

Assembly line positioning

Can be used to bring panel or glass components to the assembly point and position them accurately.

Sensitive surface product handling

Provides safe handling support in applications where mechanical clamping marks, surface scratches or breakage risk must be reduced.

Technical Configuration

Panelful and Glassful solutions are configured according to load weight, part dimensions, surface type, vacuum holding area, glass thickness, panel geometry, center of gravity, working radius, vertical movement requirement, mounting point and production line structure.

Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.

Depending on the application, the system can be evaluated with vacuum grippers, multiple vacuum pads, special glass grippers, panel grippers, mechanical gripping systems, rotation mechanisms, safety valves, vacuum monitoring systems and process specific end effector solutions.

Safety, CE Compliance and ATEX Evaluation

Safety evaluation in Panelful and Glassful applications is based on load weight, part dimensions, surface sensitivity, vacuum holding safety, breakage risk, center of gravity, operator position, working area and movement direction.

CE compliance, risk assessment, safe load handling principles and operator safety are key parts of the PM Manipulators engineering process.

In painting, chemical, solvent, dusty production areas or special process environments where there may be an explosive atmosphere risk, ATEX requirements are evaluated on a project specific basis. In these applications, the gripper system, vacuum structure, control system and working environment risk classification are analyzed together.

Product Liability Insurance

PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.

This assurance strengthens PM Manipulators' manufacturer identity in panel, glass and sensitive surface handling applications by supporting safe gripping, engineering responsibility, operator safety and customer confidence.

What Makes PM Manipulators Different?

PM Manipulators evaluates Panelful and Glassful applications not only according to load capacity. Panel or glass dimensions, surface structure, vacuum holding safety, breakage risk, center of gravity, gripping point, assembly direction, cycle frequency and operator ergonomics are analyzed together.

PM Manipulators provides strong engineering capability in:

• panel and glass handling manipulator engineering
• vacuum gripper and custom end effector design
• sensitive surface product handling experience
• center of gravity analysis for wide surface components
• precise positioning and assembly line integration
• CE compliance and risk assessment
• project specific evaluation for ATEX required applications
• safety focused approach supported by product liability insurance
• production line specific integration
• more than 5000 completed manipulator applications

With this approach, Panelful and Glassful provide a strong PM Plug and Play solution for safe, ergonomic and process oriented handling of panels, glass and wide surface sensitive components.
