What is the Helpful Pneumatic Manipulator?

Helpful is a dual rope pneumatic manipulator developed by PM Manipulators for ergonomic and controlled handling of loads up to 200 kg.

The dual rope manipulator structure provides improved load guidance and stable operator control in applications where wider movement areas and smooth handling are required.

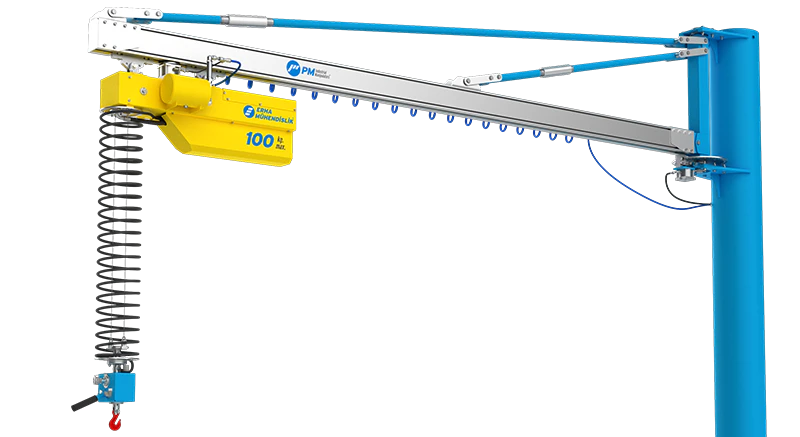

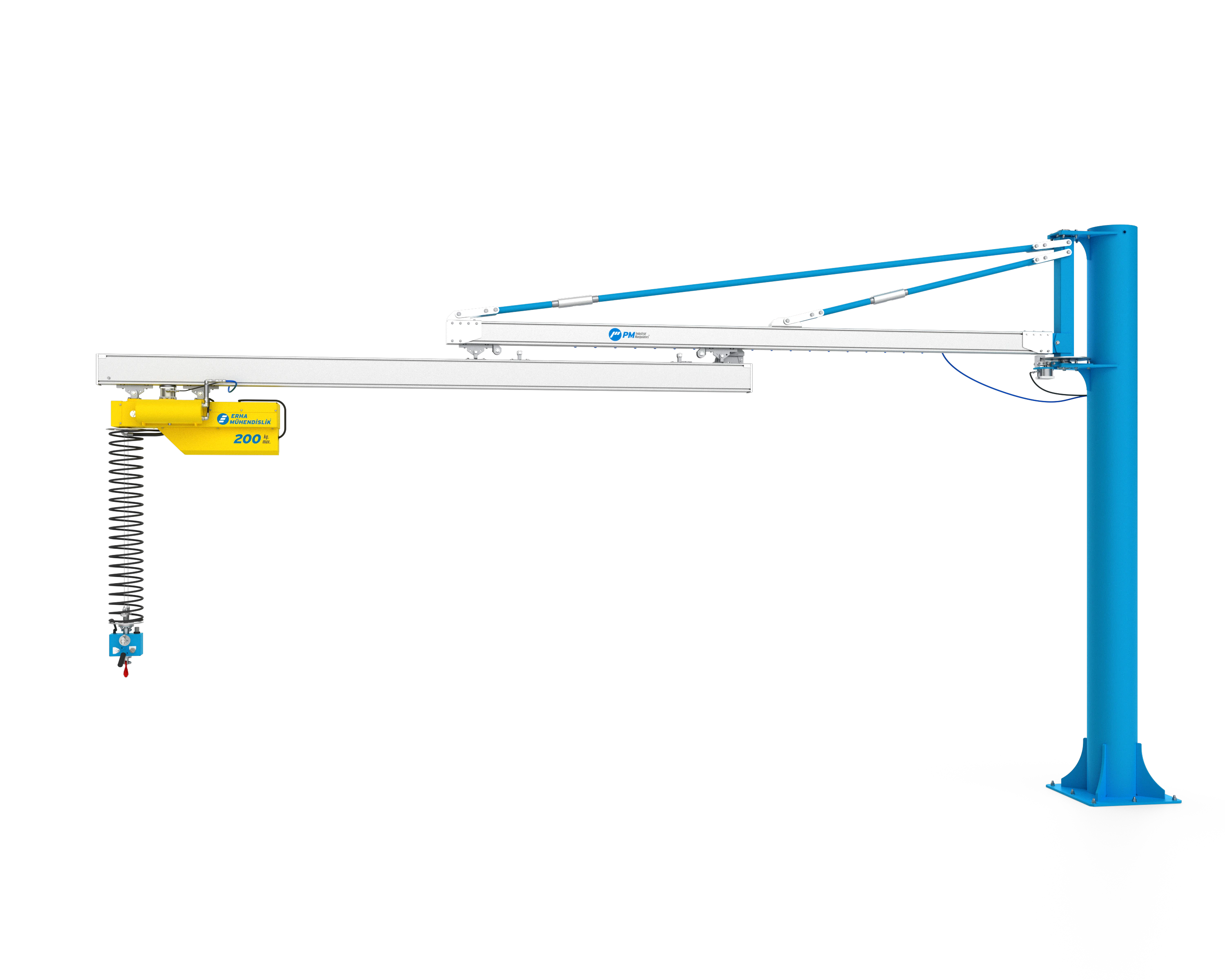

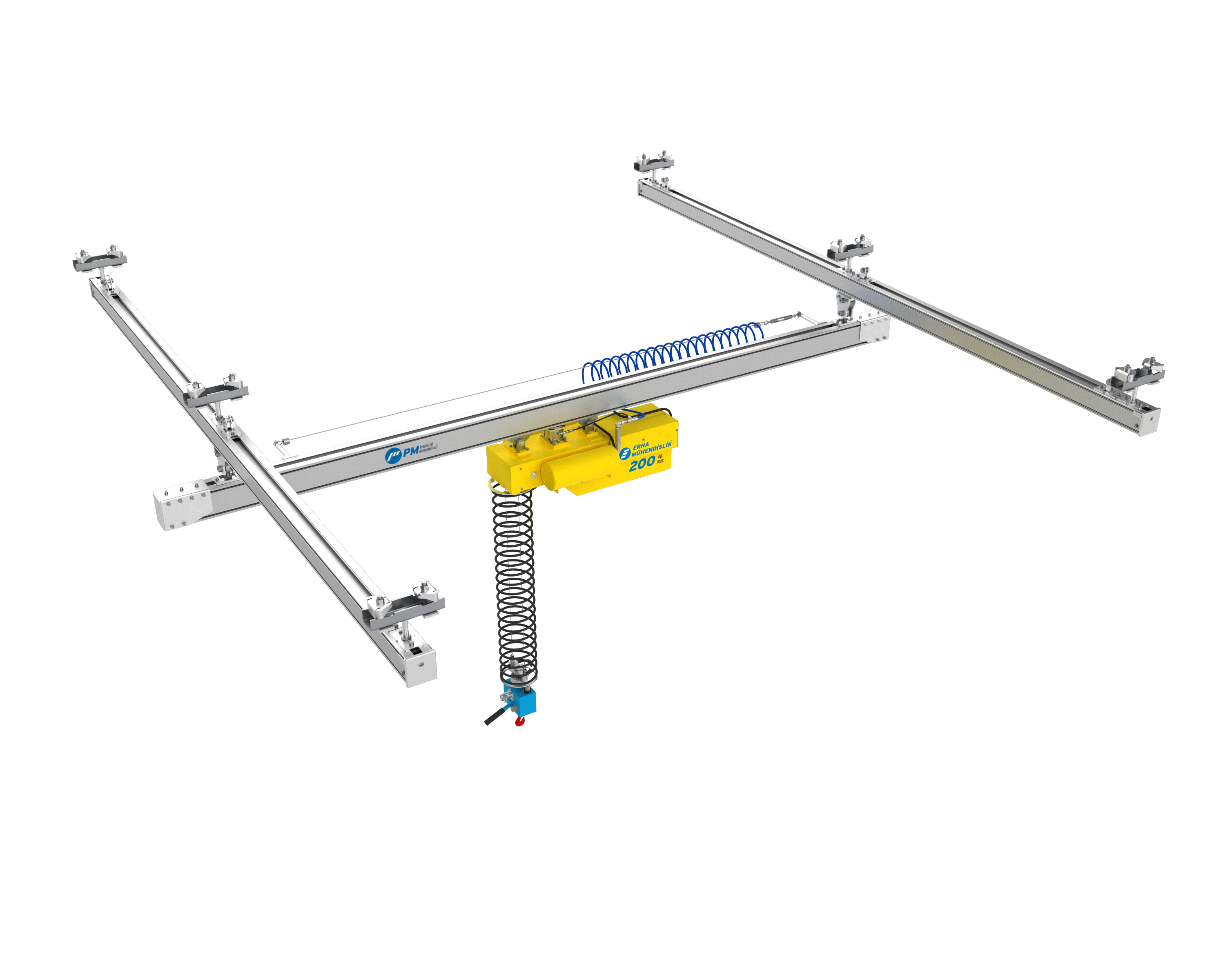

Helpful can be used with jib arm and Cartesian rail configurations, including aluminum rail systems for wider working areas and flexible movement paths.

This makes Helpful suitable for production environments where the operator needs to move loads over a defined area, between workstations or along a linear production flow.

Helpful supports ergonomic handling, smooth movement and precise positioning while reducing manual effort during repetitive industrial operations.

Which Problems Does Helpful Solve?

In many production environments, operators need to move loads not only vertically but also across a wider working area.

Manual handling or unsuitable lifting systems may create operator fatigue, inefficient movement, positioning problems, workplace safety risks and slow production flow.

Helpful solves these problems by providing ergonomic manipulator support with dual rope load control, flexible mounting and movement options.

Why Use Helpful?

Helpful provides a practical solution for applications requiring controlled handling across a wider work area.

The Helpful system offers:

• load handling capacity up to 200 kg
• dual rope manipulator structure
• jib arm and Cartesian rail configuration options
• compatibility with aluminum rail systems
• smooth movement across defined work areas
• ergonomic operator support
• reduced manual handling effort
• precise positioning capability
• compatibility with custom grippers and end effectors
• flexible integration into production layouts

Which Industries Use Helpful?

Helpful can be used in many sectors where ergonomic load transfer is required across production cells or workstations.

Main application areas include:

• assembly line operations
• automotive component handling
• white goods production
• metal component transfer
• workstation transfer systems
• packaging operations
• production cell handling
• general industrial manufacturing environments

The system can be customized with mechanical grippers, pneumatic grippers, vacuum systems and process specific end effectors.

Technical Configuration

Helpful can be configured according to load weight, working area, movement path, jib arm or Cartesian rail requirement, vertical stroke, gripper type, workstation layout and production process.

Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.

Safety, CE Compliance and ATEX Evaluation

Safety evaluation in Helpful applications is based on load weight, movement area, rail or arm configuration, gripping method, center of gravity, operator position and cycle frequency.

CE compliance, risk assessment, safe load handling and operator safety are key parts of the PM Manipulators engineering process.

ATEX requirements are evaluated on a project specific basis for applications in hazardous or potentially explosive environments.

Product Liability Insurance

PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.

This assurance supports safe operation, engineering responsibility and customer confidence.

What Makes PM Manipulators Different?

PM Manipulators evaluates Helpful applications according to the working area, production flow, load geometry, gripping requirement and operator ergonomics.

With more than 5000 completed manipulator applications, PM Manipulators provides flexible and process specific ergonomic handling solutions for different production layouts.
