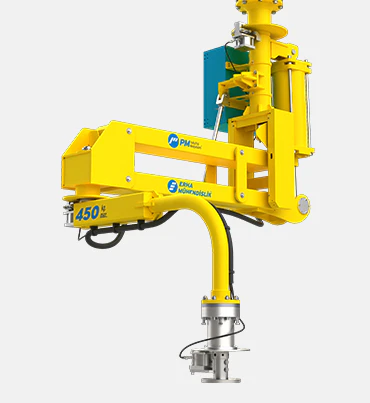

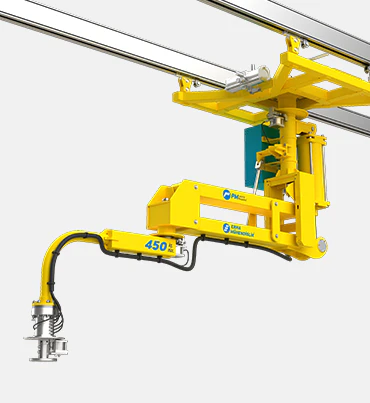

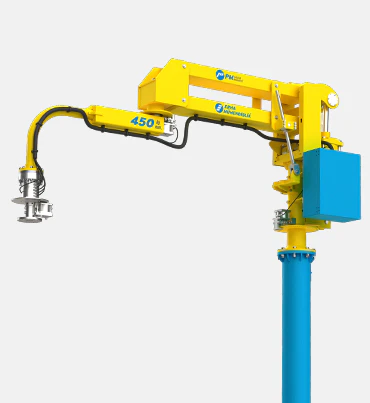

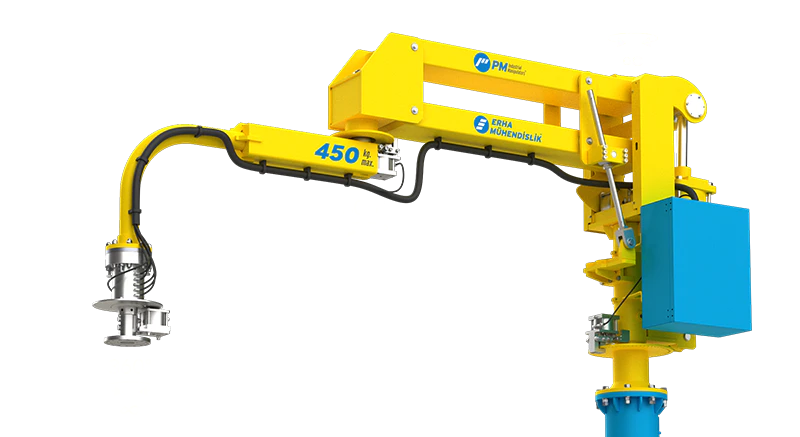

What is the Forceful Mini Pneumatic Manipulator?
Forceful Mini is a compact rigid arm pneumatic manipulator developed by PM Manipulators for ergonomic, safe and controlled handling of loads up to 140 kg.
It is designed for applications where a rigid arm structure, precise positioning and controlled load guidance are required in a compact working area.
Forceful Mini is especially suitable for compact automotive component handling, metal parts, assembly operations and production environments where loads must be moved with stability and accuracy.
The rigid arm structure provides higher control compared to rope type systems in applications where load orientation, positioning and gripping stability are critical.
Which Problems Does Forceful Mini Solve?
Some industrial loads require more stable control than a rope type manipulator can provide.
Manual handling or unsuitable lifting systems may cause operator fatigue, positioning errors, uncontrolled load movement, safety risks, inefficient workstation operation and inconsistent process quality.
Forceful Mini reduces these problems by combining pneumatic balancing with a compact rigid arm structure.
Why Use a Rigid Arm Pneumatic Manipulator?
Rigid arm pneumatic manipulators are preferred when load stability, controlled orientation and precise positioning are important.
The Forceful Mini system offers:
• load handling capacity up to 140 kg
• compact rigid arm structure
• stable load guidance
• ergonomic operator support
• controlled positioning
• reduced manual effort
• compatibility with custom grippers
• suitable structure for limited work areas
• process specific handling capability
Which Industries Use Forceful Mini?
Forceful Mini can be used in many sectors requiring compact, stable and controlled load handling.
Main application areas include:
• automotive component handling
• compact assembly line operations
• metal processing
• machine manufacturing
• white goods production
• workstation transfer systems
• precision positioning applications
• general industrial manufacturing
The system can be customized with mechanical grippers, pneumatic grippers, rotating grippers, vacuum systems or application specific end effectors.
Technical Configuration
Forceful Mini can be configured according to load weight, working radius, vertical movement requirement, rigid arm structure, gripper type, rotation requirement, center of gravity and workstation layout.
Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.
Safety, CE Compliance and ATEX Evaluation
Safety evaluation in Forceful Mini applications is based on load weight, rigid arm movement, center of gravity, gripping safety, rotation requirement, operator position and working area.
CE compliance, risk assessment, safe load handling and operator safety are key parts of the PM Manipulators engineering process.
ATEX requirements are evaluated on a project specific basis when the application environment requires hazardous area assessment.
Product Liability Insurance
PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.
This assurance supports PM Manipulators’ manufacturer responsibility in compact rigid arm handling applications.
What Makes PM Manipulators Different?
PM Manipulators develops Forceful Mini applications according to load geometry, gripping method, production process, movement requirement and operator ergonomics.
With more than 5000 completed manipulator applications, PM Manipulators provides compact, stable and process oriented manipulator systems supported by engineering and custom gripper capability.
