What is the Transporter Pneumatic Manipulator?

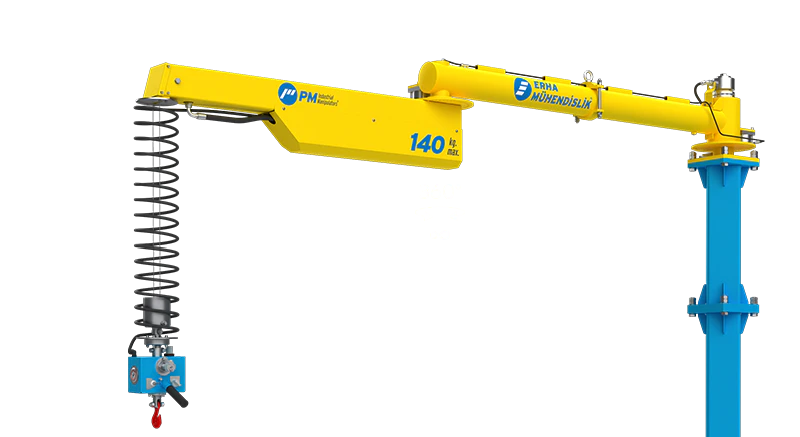

Transporter is a rope type pneumatic manipulator developed by PM Manipulators for ergonomic, responsive and precise handling of industrial components up to 140 kg.

Thanks to its rope based manipulator structure, Transporter provides smooth movement characteristics and allows operators to guide loads naturally with reduced physical effort.

Its pneumatic balancing technology supports controlled vertical movement, floating load control and precise positioning during industrial handling operations.

Transporter is especially suitable for repetitive industrial handling operations, fast cycle production environments, ergonomic workstation transfer systems, automotive component handling and responsive assembly line operations.

Which Problems Does Transporter Solve?

Manual handling of medium weight industrial components may create operator fatigue, workplace safety risks, repetitive strain injuries, inconsistent positioning quality, operational slowdowns and production inefficiencies.

Transporter reduces these problems by providing pneumatic balancing support and responsive load guidance.

Its rope type structure allows operators to perform component transfer, lifting and positioning tasks with greater precision, speed and reduced physical effort.

Why Use a Rope Type Pneumatic Manipulator?

Rope type pneumatic manipulators provide major advantages in applications requiring responsive movement, smooth positioning, controlled handling and ergonomic operator support.

The Transporter system offers:

• load handling capacity up to 140 kg
• responsive manipulator movement
• low inertia handling characteristics
• precise positioning control
• floating load guidance
• ergonomic operator assistance
• fast cycle handling capability
• smooth industrial movement
• flexible workstation integration

Which Industries Use Transporter?

Transporter can be used across many industrial sectors where medium load handling, repetitive movement and controlled positioning are required.

Main application areas include:

• automotive manufacturing
• assembly line operations
• metal processing applications
• white goods production lines
• workstation transfer systems
• packaging operations
• repetitive industrial handling applications
• general industrial manufacturing environments

The system can be customized with pneumatic grippers, vacuum systems, mechanical grippers and process specific end effectors according to application requirements.

Technical Configuration

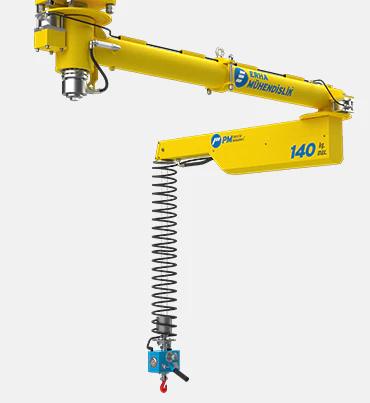

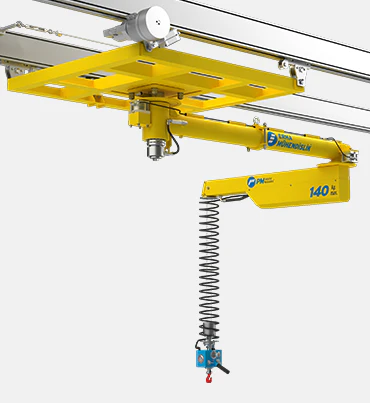

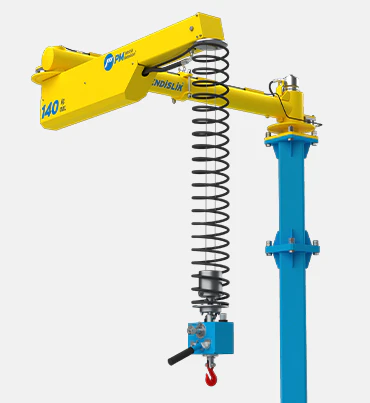

Transporter can be configured according to load weight, working radius, vertical movement requirement, gripper type, workstation layout, mounting structure and production process.

Detailed technical values and mounting alternatives should be shown in the existing Technical Specifications and Mounting Options sections on the product page.

Safety, CE Compliance and ATEX Evaluation

Safety evaluation in Transporter applications is based on load weight, center of gravity, gripping method, operator position, working area, movement path and cycle frequency.

CE compliance, risk assessment, operator safety and safe load handling principles are key parts of the PM Manipulators engineering process.

In special process environments where there may be an explosive atmosphere risk, ATEX requirements are evaluated on a project specific basis.

Product Liability Insurance

PM Manipulators products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.

This assurance supports safe handling, engineering responsibility, operator safety and customer confidence.

What Makes PM Manipulators Different?

PM Manipulators evaluates each Transporter application according to production process, load geometry, gripping requirement, cycle frequency, movement path, operator ergonomics and safety expectations.

Transporter is not treated as a standard lifting device. It is engineered as a process specific pneumatic manipulator system that can be adapted to the customer’s workstation layout, component form and handling cycle.

PM Manipulators provides strong engineering capability in:

• rope type pneumatic manipulator engineering
• ergonomic workstation handling systems
• custom gripper and end effector design
• pneumatic, vacuum or mechanical gripping solutions
• production line specific integration
• CE compliance and risk assessment
• project specific evaluation for ATEX required applications
• safety focused approach supported by product liability insurance
• more than 5000 completed manipulator applications

With this approach, Transporter provides a responsive, ergonomic and process oriented PM Manipulators solution for medium load handling operations.
