Pneumatic Manipulator Selection: How to Choose the Right System
Pneumatic manipulators are industrial material handling systems designed to help operators move heavy, delicate, large, or repetitive loads more safely, accurately, and ergonomically within production lines.
The purpose of these systems is not simply to lift a load. Their primary function is to grip the load securely, keep it balanced, rotate it when required, position it precisely, and reduce the operator's physical effort.
What Is a Pneumatic Manipulator?
A pneumatic manipulator is an operator-assisted lifting system that uses compressed air to lift, transport, balance, and position loads.
Instead of lifting the load using physical strength, the operator guides the manipulator, allowing the load to move smoothly and under full control while significantly reducing physical strain.
These systems are widely used in industries such as automotive, home appliances, metal processing, glass, plastics, packaging, and machinery manufacturing.
Why Should Pneumatic Manipulator Selection Not Be Based Solely on Load Capacity?
Although load capacity is an important selection criterion, it should never be the only consideration.
Products with the same weight may require completely different handling solutions. For example, sheet metal, glass panels, coils, and cast components cannot be handled using the same gripping method.
The following factors should all be evaluated together:
-
Product weight and center of gravity
-
Product dimensions and geometry
-
Surface sensitivity
-
Gripping method
-
Working area
-
Handling distance
-
Rotation requirements
-
Operator handling process
-
Safety requirements
Why Is Gripper Selection Important?
The gripper is one of the most critical components determining a manipulator's overall performance.
It should be selected according to the product's shape, surface characteristics, center of gravity, and process requirements.
Common Gripper Types
Vacuum Gripper
Used for glass, sheet metal, panels, and other products with flat surfaces.
Magnetic Gripper
Preferred for handling steel and ferrous metal components.
Mechanical Gripper
Suitable for applications requiring customized or specialized gripping solutions.
Safety in Pneumatic Manipulators
Since pneumatic manipulators operate in direct collaboration with the operator, safety is a fundamental aspect of system design.
Key safety considerations include:
-
Secure load gripping
-
Safe behavior during compressed air loss
-
Prevention of uncontrolled load drops
-
Sensor monitoring
-
Braking systems
-
Easily accessible emergency stop controls
Two-Hand Control and Sensor Integration
Two-hand control systems help reduce unintended movements during critical operations.
Vacuum sensors, pressure monitoring devices, and part detection systems are also essential components for ensuring safe operation.
Selecting the Right Arm Configuration and Working Envelope
The manipulator arm configuration should be selected according to the required movements within the production environment.
Important considerations include:
Ergonomics and Operator Comfort
One of the greatest advantages of pneumatic manipulators is their ability to improve workplace ergonomics.
A well-designed system enables the operator to guide the load rather than physically carry it.
The positioning of the control handle, joystick, grips, and the operator's working posture all have a direct impact on ease of use and productivity.
Maintenance and Serviceability
Long-term reliability should also be considered during manipulator selection.
Features that simplify maintenance include:
-
Well-organized pneumatic line routing
-
Easily accessible components
-
Numbered and color-coded connections
-
Cycle monitoring systems
Easy maintenance contributes to higher production uptime and operational continuity.
CE Compliance and Manufacturing Quality
Because pneumatic manipulators operate alongside people, they must be designed in accordance with applicable machinery safety standards.
Important evaluation criteria include:
Application Areas
Reelful: Coil, reel, and roll handling applications.

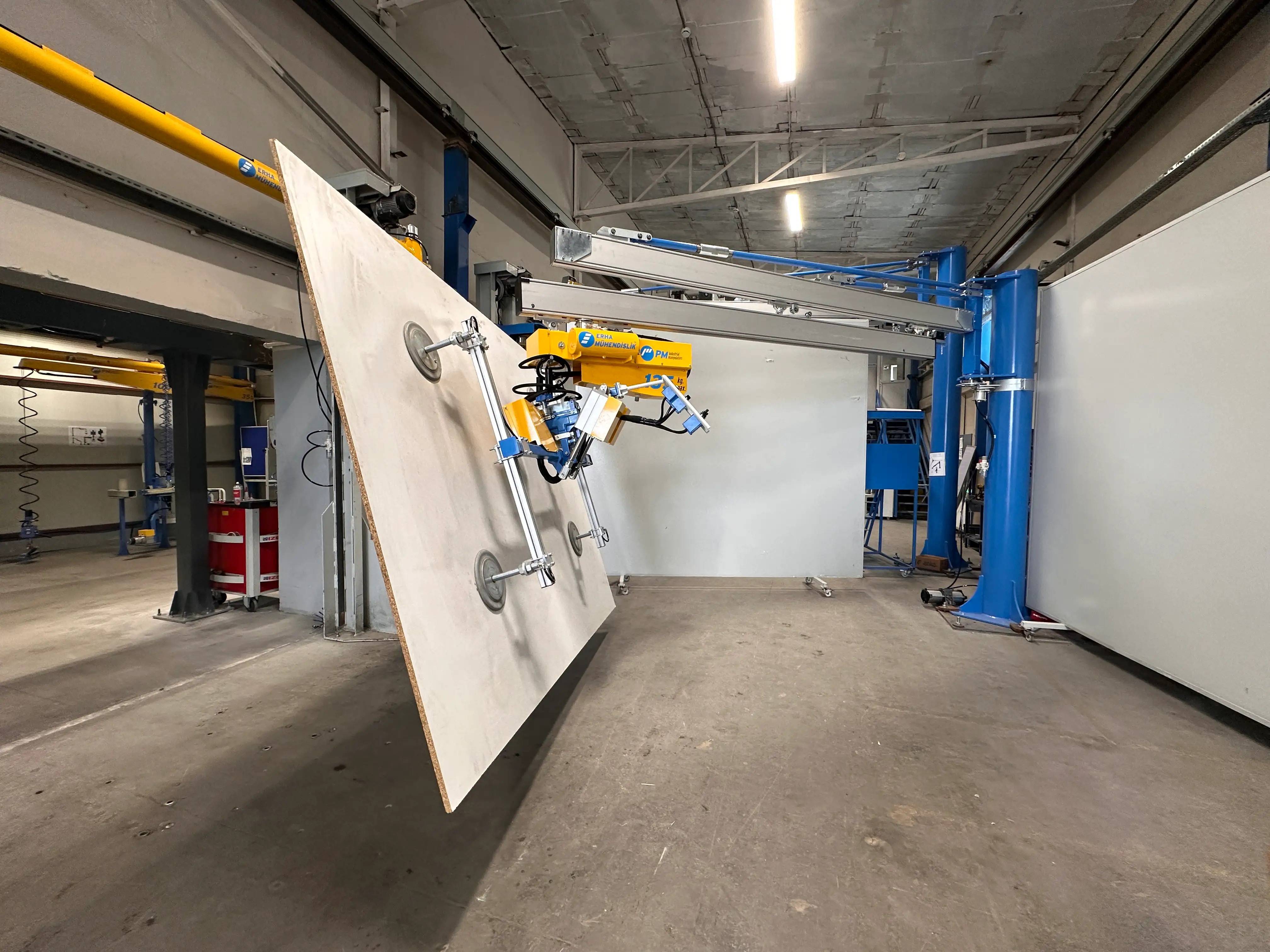

Panelful: Handling solutions for panels and large flat products.
Glassful: Glass handling and precision vacuum applications.
Vacful: Solutions for products that can be handled using vacuum technology.
Drumful: Drum handling and rotation applications.
Magnetful: Handling solutions for metal sheets and steel components.
Pneumatic Manipulator or Overhead Crane?
Overhead cranes are generally designed for lifting and transporting loads.
Pneumatic manipulators, however, offer significant advantages when applications require precise positioning, controlled movement, ergonomic operation, and specialized gripping solutions.
The right choice depends not on the equipment name, but on the specific requirements of the production process.
The PM Manipulator Approach
At PM Manipulator, system selection goes far beyond evaluating product weight alone.
We analyze how the product will be picked up, gripped, transported, positioned, whether it requires rotation, and how the operator will interact with the system.
Our goal is not simply to supply equipment, but to provide the most effective solution for real material handling challenges on the production line.
Conclusion
Selecting the right pneumatic manipulator requires careful evaluation of load capacity, gripping method, working area, safety, ergonomics, and production requirements.
A properly configured pneumatic manipulator:
PM Manipulator develops material handling solutions for a wide range of industries through both standardized product families and application-specific engineering solutions.
