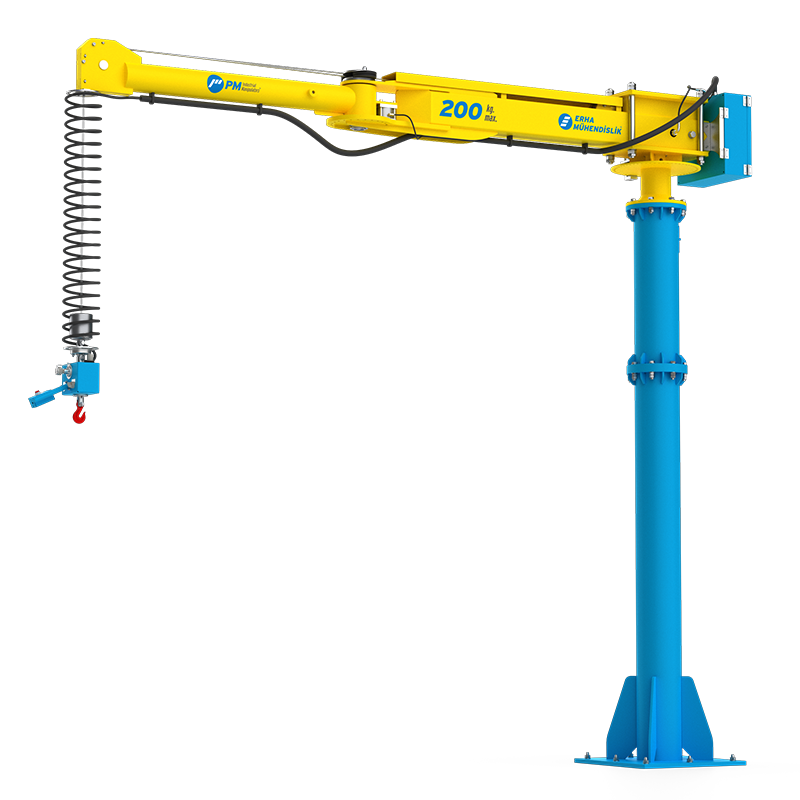

Gentle: Ergonomic, Safe, and Precise Handling Solution

The Gentle Pneumatic Manipulator is designed to enable operators to transport loads with maximum safety and precision while exerting minimal effort. Its dual-cable balancing mechanism, pneumatically controlled lifting system, and precise movement capabilities through a rotary joint structure provide a safe and efficient handling experience. By balancing the load's weight, it allows the operator to perform lifting operations effortlessly. With various attachments and custom engineering solutions, the manipulator can be equipped with vacuum, gripper, magnetic, or specially designed handling systems, offering a wide range of applications.

General Features

• Capacity: Up to 180 kg load capacity
• Maximum Reach Distance: 4,500 mm
• Vertical Lifting Distance: 2,000 mm
• Operating Principle: Works with dry, filtered (40 μm), oil-free compressed air (min. 0.7/0.8 MPa)
• Air Consumption: Maximum 140 nl/min

Mounting Options

The Gentle Manipulator is available with various installation options, adapting to different production lines and work environments:

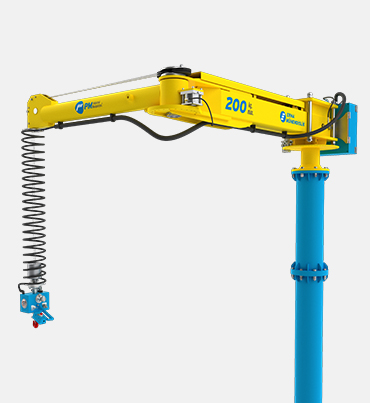

• Gentle Floor-Mounted (GY) – Fixed to the floor for stable operation.

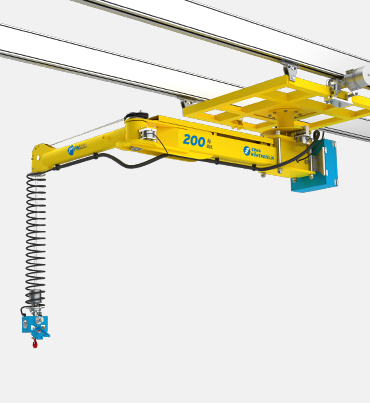

• Gentle Overhead Rail-Mounted (GTA) – Mounted on a rail system, allowing mobile operation.

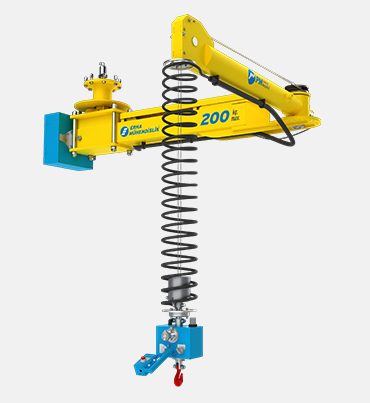

• Gentle Ceiling-Mounted (GT) – Mounted on the ceiling, maximizing workspace efficiency.

Advantages

• Precise and Ergonomic Operation: Ideal for applications requiring delicate handling.
• Safe Handling: The dual-cable system keeps the load balanced, minimizing risks of tipping and dropping.
• Compliance with CE Standards: Meets international safety and quality standards, preventing workplace accidents. Our products comply with the 2006/42/CE Machinery Directive, as well as TS EN 14238:2004+A1:2009, TS EN ISO 12100:2010, and TS EN ISO 4414:2010.
• ATEX Certification: Safe for use in explosive environments, making it an excellent choice for chemical, pharmaceutical, oil & gas, and paint production industries.
• Stainless Steel Option: Corrosion-resistant version available for hygienic environments.
• Durable Design: Engineered by Erha Mühendislik with high-tech, long-lasting materials, making it suitable for heavy industrial applications.
• Low Operating Costs: Energy-efficient design and low maintenance requirements reduce operational expenses.
• Modular Design: Can be customized with special handling attachments tailored to user needs.
• Efficient Workflow: Enhances work processes, reducing downtime in production lines.

Follow Us on YouTube!

With over 400 successful projects, explore real-world applications and our innovative solutions by following us on YouTube: https://www.youtube.com/@PMIndustrialManipulators

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber
