Bobbinful Pneumatic Manipulator

Powerful, Ergonomic, and Precise Solution for Bobbin Handling

Bobbinful is a rigid-arm pneumatic manipulator specifically designed for bobbin handling and positioning. With its 90° pneumatic rotation feature, it allows bobbins to be easily transferred from vertical to horizontal positions or vice versa. Thanks to its modular structure, which can be mounted on ceilings, columns, or rail systems, it can be seamlessly integrated into different production areas.

Widely used in the paper, plastic, textile, packaging, metal, and cable industries, Bobbinful enables the safe and effortless handling of heavy bobbins, reducing operator fatigue and increasing the efficiency of production processes.

Bobbinful Models and Technical Specifications

Bobbinful S

• Lifting Capacity: 0-100 kg
• Application Area: Ideal for the ergonomic and safe handling of small and lightweight bobbins with a 90° rotation feature.

Bobbinful M

• Lifting Capacity: 100-250 kg
• Application Area: Used for the precise handling and positioning of medium-sized bobbins with a 90° rotation feature.

Bobbinful L

• Lifting Capacity: 100-450 kg
• Application Area: Designed for the safe handling of heavy and large bobbins with a 90° rotation feature.

General Technical Specifications

• Operating Air: Dry, filtered (40 µm), and oil-free air at a minimum pressure of 0.7/0.8 MPa
• 90° Pneumatic Rotation: Allows bobbins to be transferred from vertical to horizontal positions or vice versa

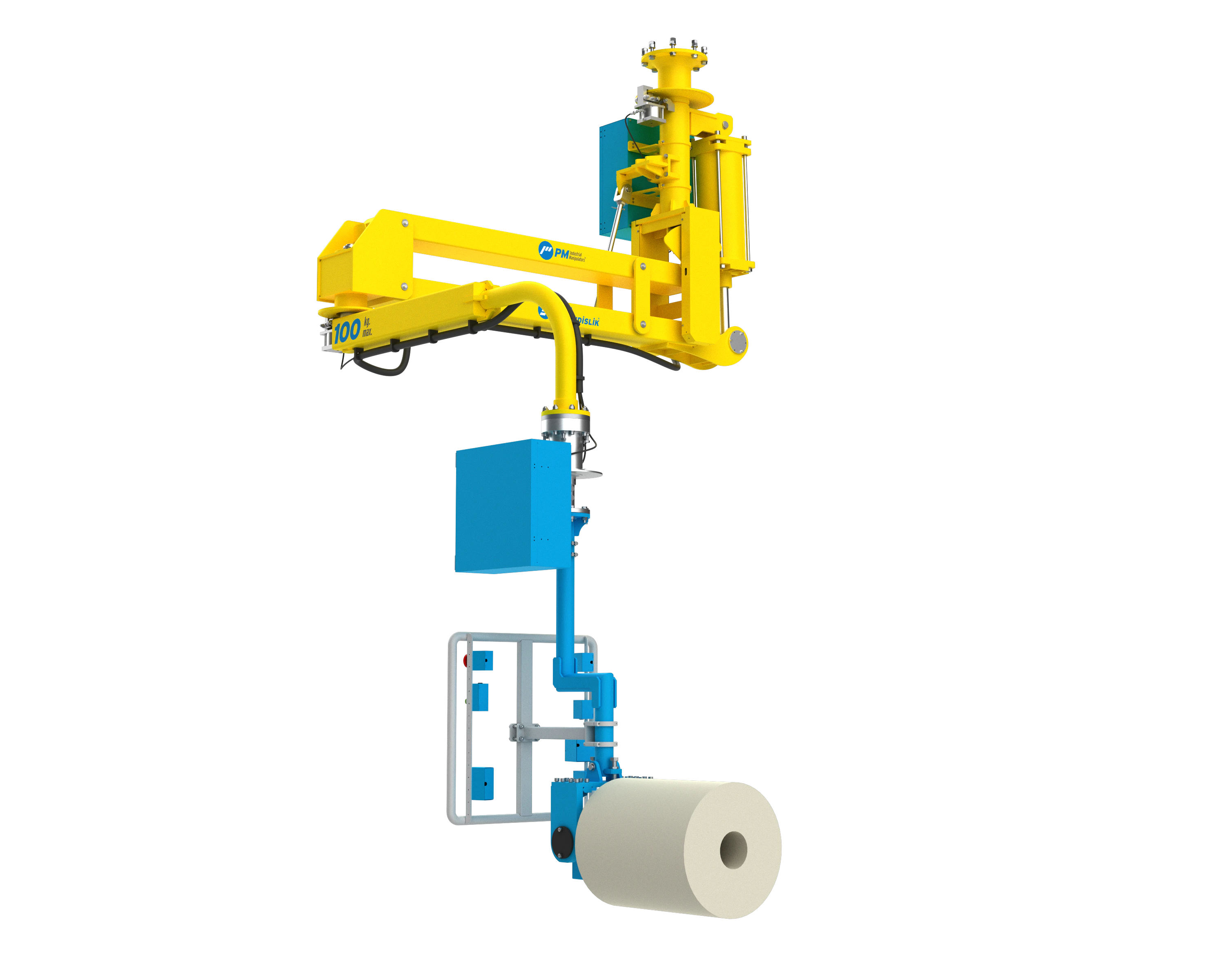

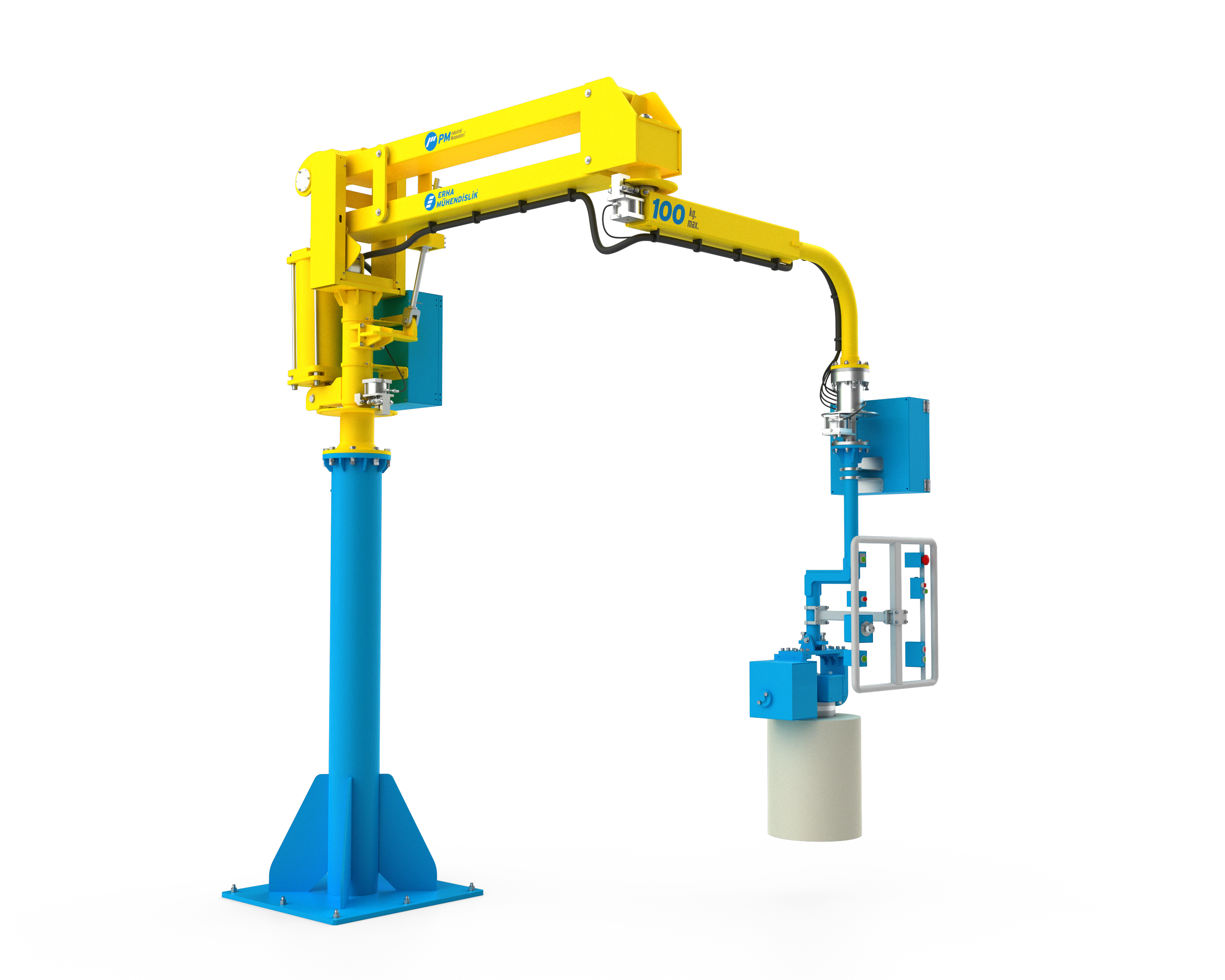

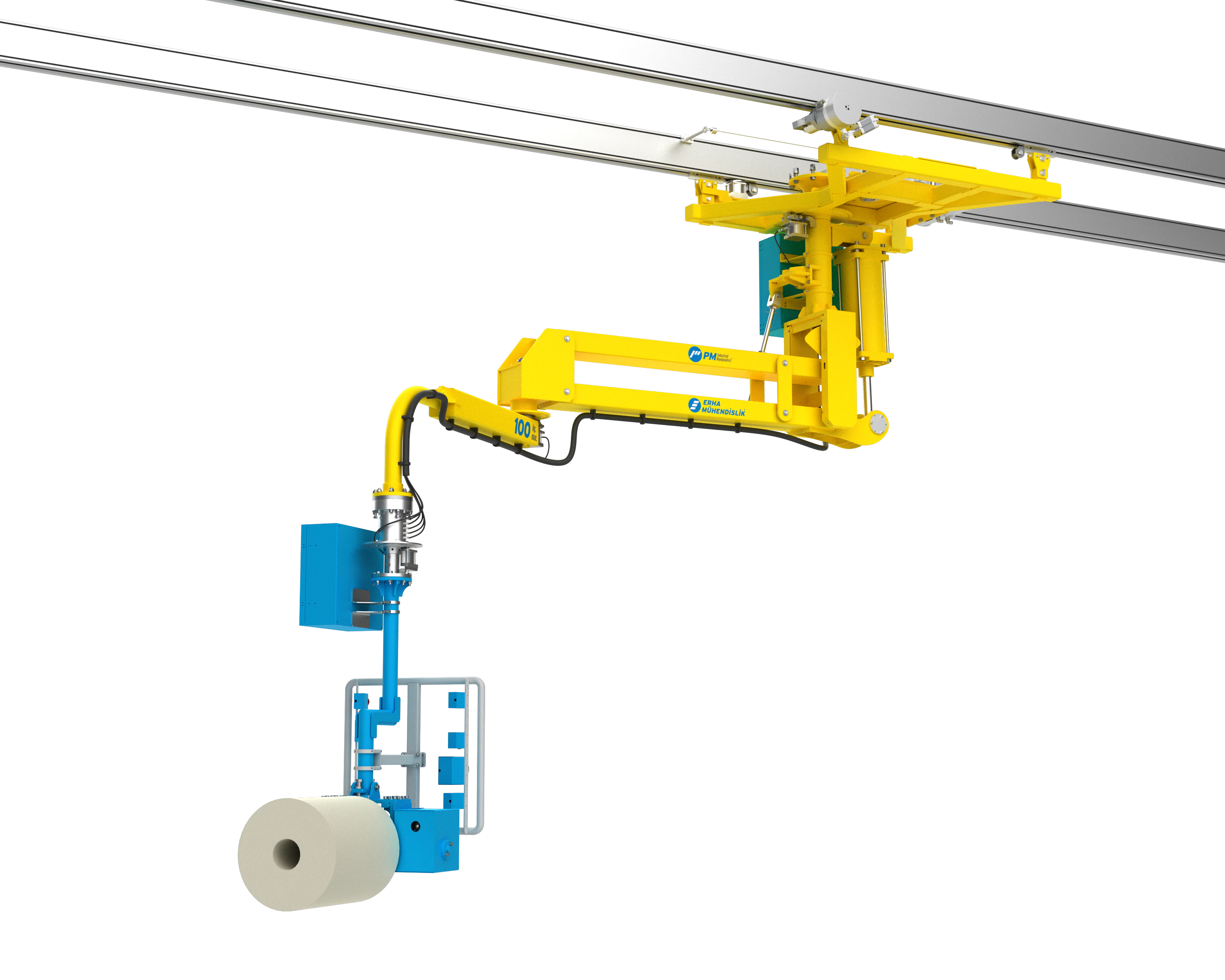

• Mounting Options: Ceiling, column, or rail system
• Energy Efficiency: High performance with low energy consumption
• Control Type: Ergonomic control handle for precise operation
• Safety: CE-certified, durable design optimized for heavy loads

Advantages

• Specialized Bobbin Handling Solution: Ensures the precise and safe transportation of bobbins, simplifying production processes.
• 90° Pneumatic Rotation: Enables quick and effortless bobbin positioning adjustments.
• Ergonomic and Safe Operation: Minimizes operator fatigue while enhancing workplace safety.
• High Lifting Capacity: Offers different model options with a lifting capacity of up to 450 kg.
• Flexible Mounting Options: Can be integrated into ceiling, column, or rail systems to suit various production environments.
• Low Operating Cost: Long-lasting design with minimal maintenance requirements and energy-saving features.

Bobbinful is a pneumatic manipulator that makes bobbin handling and positioning ergonomic, fast, and safe across various industries. Choose our Bobbinful model to enhance efficiency in your bobbin handling processes!

For more information, contact us!

Application Areas
Bobbinful is the ideal solution for enhancing workforce efficiency in modern production processes. It is specifically designed for the handling, processing, and assembly of bobbins, ensuring ergonomic and safe operation in industries such as paper, packaging, automotive, electronics, and more.
