Powerful: A Strong, Durable, and Precise Handling Solution for Heavy Loads

The Powerful Pneumatic Manipulator not only provides ergonomic operation but also ensures the safe and precise handling of heavy loads, adding flexibility and operational efficiency to production processes. Its rigid arm structure enables the secure and stable gripping of offset, off-center, and asymmetrical loads. The pneumatic balancing system and precise motion control mechanisms allow operators to transport loads with minimal effort, ensuring maximum efficiency and ergonomics in the workplace.

The Powerful model can be equipped with vacuum, gripper, and magnetic holders to suit different industrial needs. These tools enhance precision during transportation, providing a safe and efficient solution for various load types.

With the ability to move parts at 90°, 180°, and 360° along multiple axes, it offers flexibility in complex handling operations. The rigid arm structure and powerful balancing mechanisms enable the precise movement of heavy loads. This movement capability is provided by pneumatically controlled actuators and motors. The operator can manually adjust the load balance within safety parameters, ensuring secure and efficient transportation.

General Features

• Capacity: Up to 750 kg load capacity
• Maximum Reach Distance: 4,500 mm
• Vertical Lifting Distance: 2,450 mm
• Operating Principle: Works with dry, filtered (40 μm), oil-free compressed air (min. 0.7/0.8 MPa)
• Air Consumption: Maximum 270 nl/min

Mounting Options

The Powerful Manipulator is available with various mounting options to meet different industrial requirements:

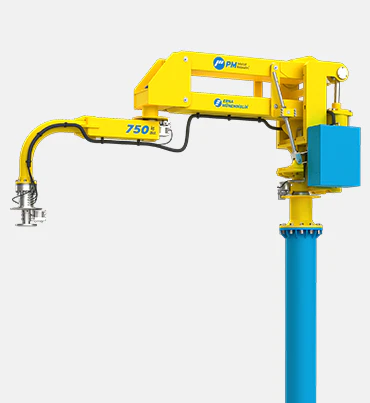

• Powerful Column-Mounted (PY) – Mounted to the floor with a fixed column, providing a wide working area.

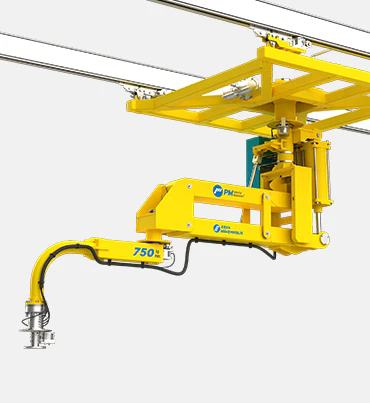

• Powerful Overhead Rail-Mounted (PTA) – Mounted on a ceiling rail system, enabling mobile operation.

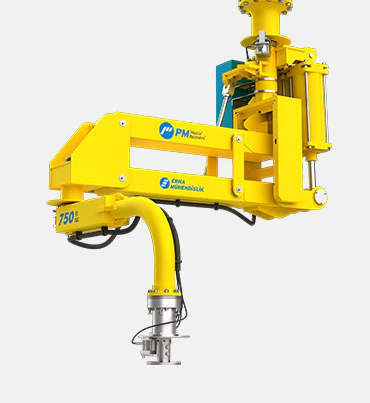

• Powerful Ceiling-Mounted (PT) – Ceiling-mounted configuration optimizes space efficiency, even in tight working areas.

Advantages

• Rigid Arm Structure: Ensures safe handling by balancing offset and heavy loads.
• Safe Transportation: The pneumatic balancing mechanism provides precise motion control. Safety valves and locking mechanisms prevent uncontrolled load drops, maximizing operator and equipment safety.
• CE Compliance: Our products conform to 2006/42/CE Machinery Directive, TS EN 14238:2004+A1:2009, TS EN ISO 12100:2010, and TS EN ISO 4414:2010 standards.
• ATEX Certification: Suitable for explosive environments, making it ideal for chemical, pharmaceutical, oil & gas, and paint production industries.
• Stainless Steel Option: Corrosion-resistant design for hygienic environments.
• Durable Design: Engineered by Erha Mühendislik, the high-tech rigid arm structure ensures long-lasting durability.
• Low Maintenance Costs: Modular design allows for easy maintenance and extended lifespan.
• Modular Design: Can be customized with various attachments for different load types.
• Efficient Operation: Optimizes workflow, minimizing downtime in production lines.

Follow Us on YouTube!

With over 400 successful projects, explore real-world applications and our innovative solutions by following us on YouTube: https://www.youtube.com/@PMIndustrialManipulators

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber
