Transporter

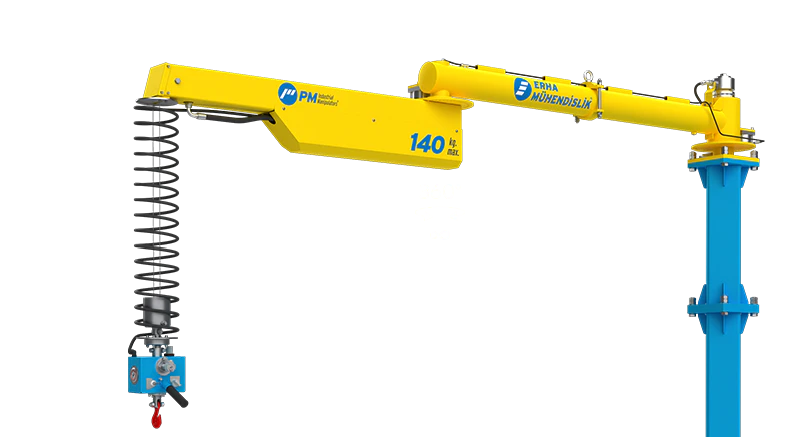

Pneumatic Manipulator with Rope System

Transporter Pneumatic Manipulators are designed to move operator-centered loads within the work area with minimum effort. It balances the weight of the load, allowing the operator to carry the load quickly and safely.

The balance of the load to be carried is provided by connecting two steel cables to the balance unit. Manipulators, either floor mounted or ceiling mounted. Manipulators are produced with standard hooks, but they can also be produced with special holders designed according to needs. The manipulator, which consists of two arms, has a total of two brakes on the arm rotation axis.

Works with dry, filtrated (40 μm) and oil free compressed air (min. 0.7/0.8 MPa).

120 kg max. weight capacity. 4.500 mm max. radius. 1.800 mm vertical lift.
50 nl/min max. air consumption.

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber

Download Transporter Data Sheet

Weight Capacity / kg   120 100 85 75
Max. Radius / mm Rmax 3000 3500 4000 4500
Min. Radius / mm Rmin 420 530 640 750
Vertical Lift / mm H 1800 1800 1800 1800
Min. Vertical Lift / mm *h 200 200 200 200
Max. Height / mm *Hmax 2635 2635 2635 2635
Min. Height / mm *Hmin 2000 2000 2000 2000
Min. Height / mm *Hmin 2000 2000 2000 2000
* Marked dimensions can change according to the customer request.

MOUNTING OPTIONS

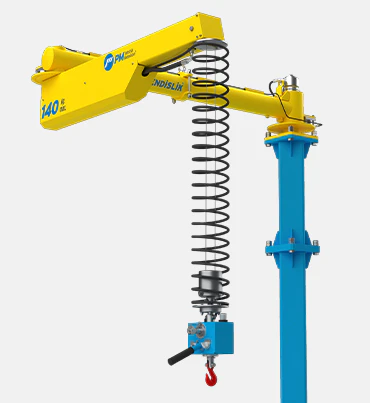

Transporter

Column Mounted TY

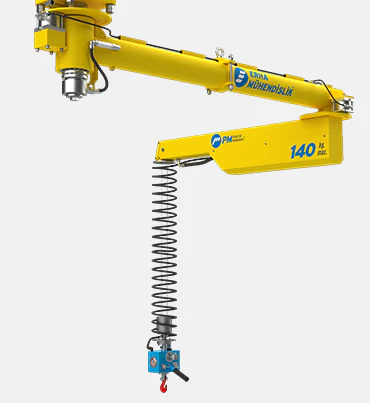

Transporter

Overhead Mounted TT

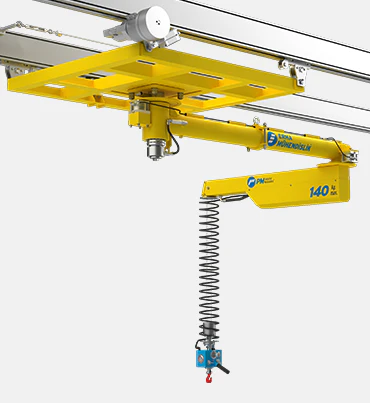

Transporter

Overhead Trolley Mounted TTA
