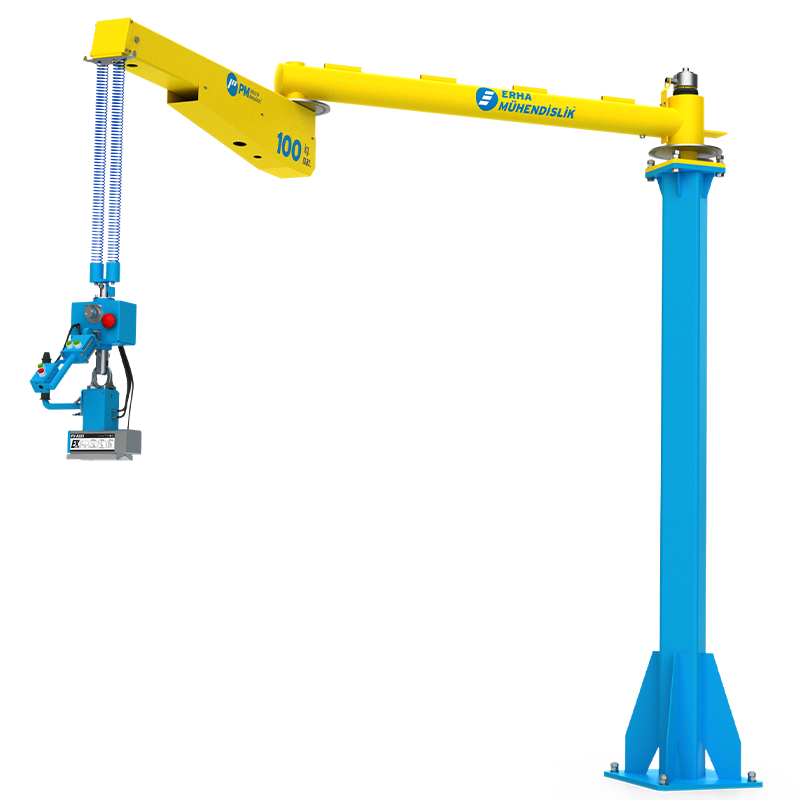

Magnetful Pneumatic Manipulator

Powerful, Safe, and Ergonomic Handling Solution for Magnetic Surface Metal Parts

Magnetful is a pneumatic manipulator designed for the safe, fast, and ergonomic handling of magnetic surface metal sheets, plates, sheets, pipes, and profiles. By combining pneumatic and magnetic gripping technology, it securely lifts, transports, and positions metal loads. Thanks to its modular design, which can be mounted on ceilings, columns, or rail systems, it can be easily integrated into different production areas.

Widely used in metal processing, automotive, heavy industry, shipbuilding, foundry, machinery manufacturing, and logistics sectors, Magnetful prevents the manual lifting of metal loads, reducing workplace accidents, minimizing operator fatigue, and accelerating production processes.

Magnetful Models and Technical Specifications

Magnetful 50

• Lifting Capacity: 0-50 kg
• Application Area: Ideal for ergonomic and safe handling with a 90° rotation feature.

Magnetful 100

• Lifting Capacity: 0-100 kg
• Application Area: Used for precise handling and positioning with a 90° rotation feature.

Technical Specifications

• Lifting Capacity: Up to 100 kg (maximum)
• Operating Air: Dry, filtered (40 µm), and oil-free air at a minimum pressure of 0.7/0.8 MPa
• Magnetic Gripping System: Pneumatic magnetic gripping technology for safe metal part lifting
• Maximum Radius: 3000 mm
• Vertical Movement: 1800 mm
• Air Consumption: 50 nl/min

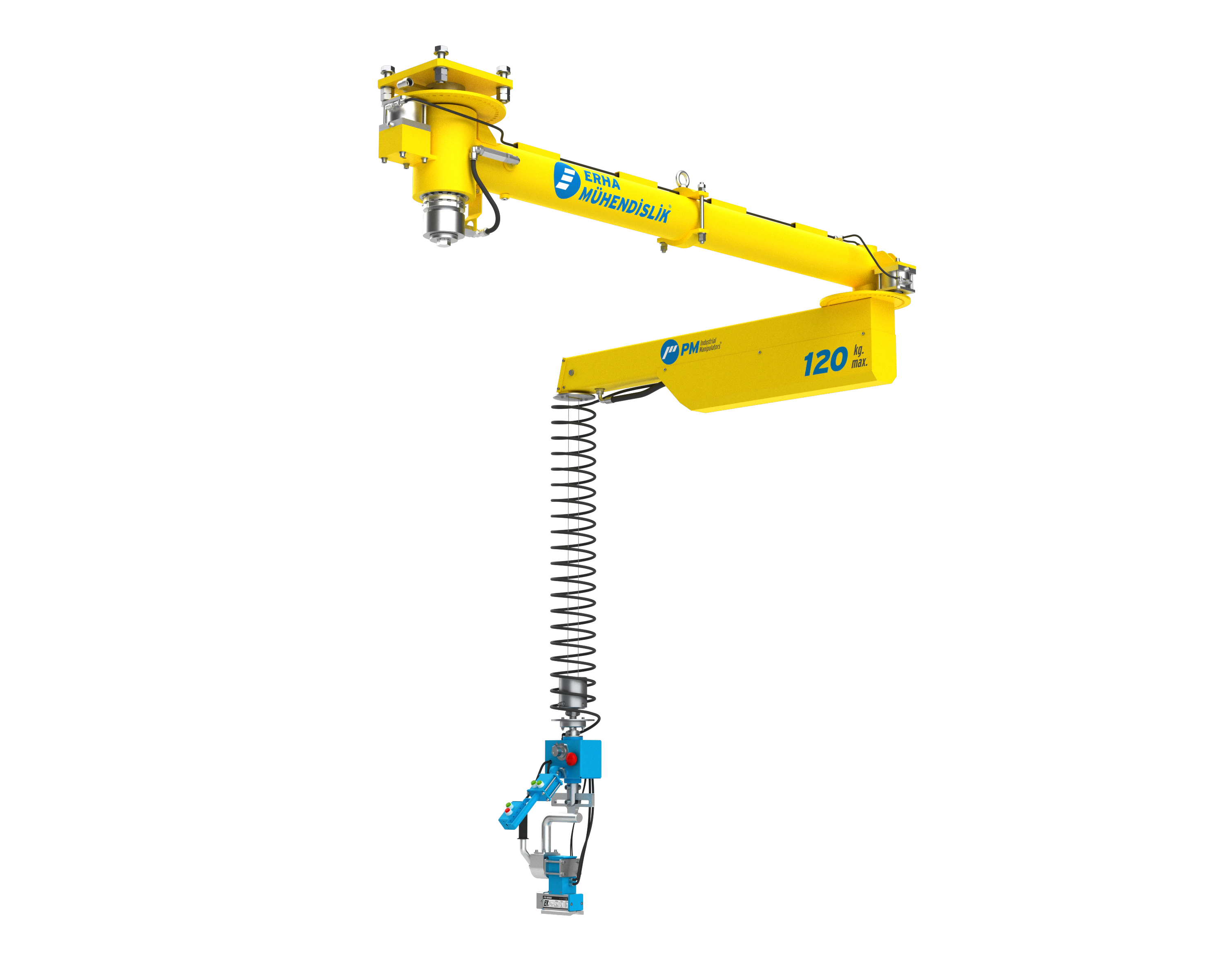

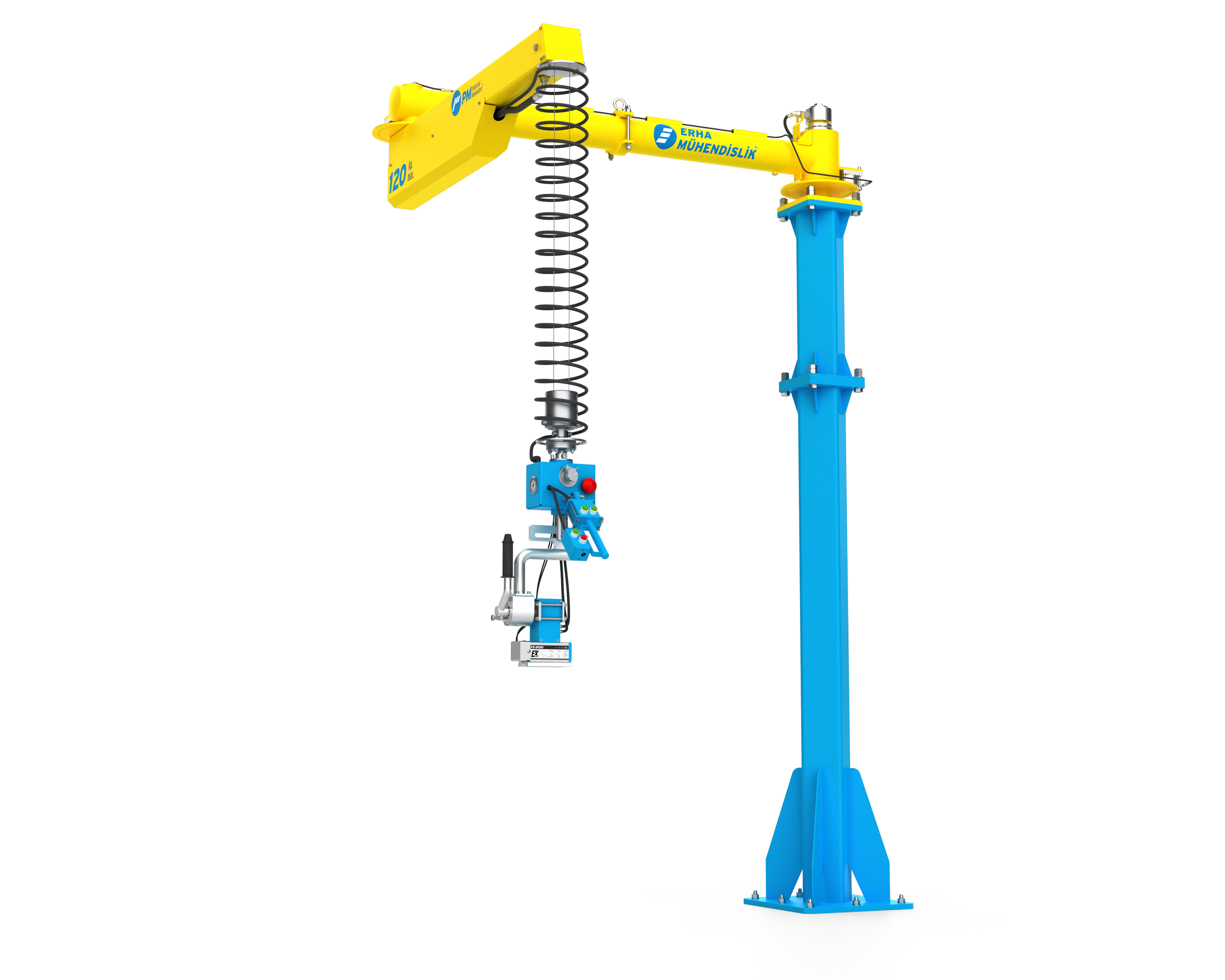

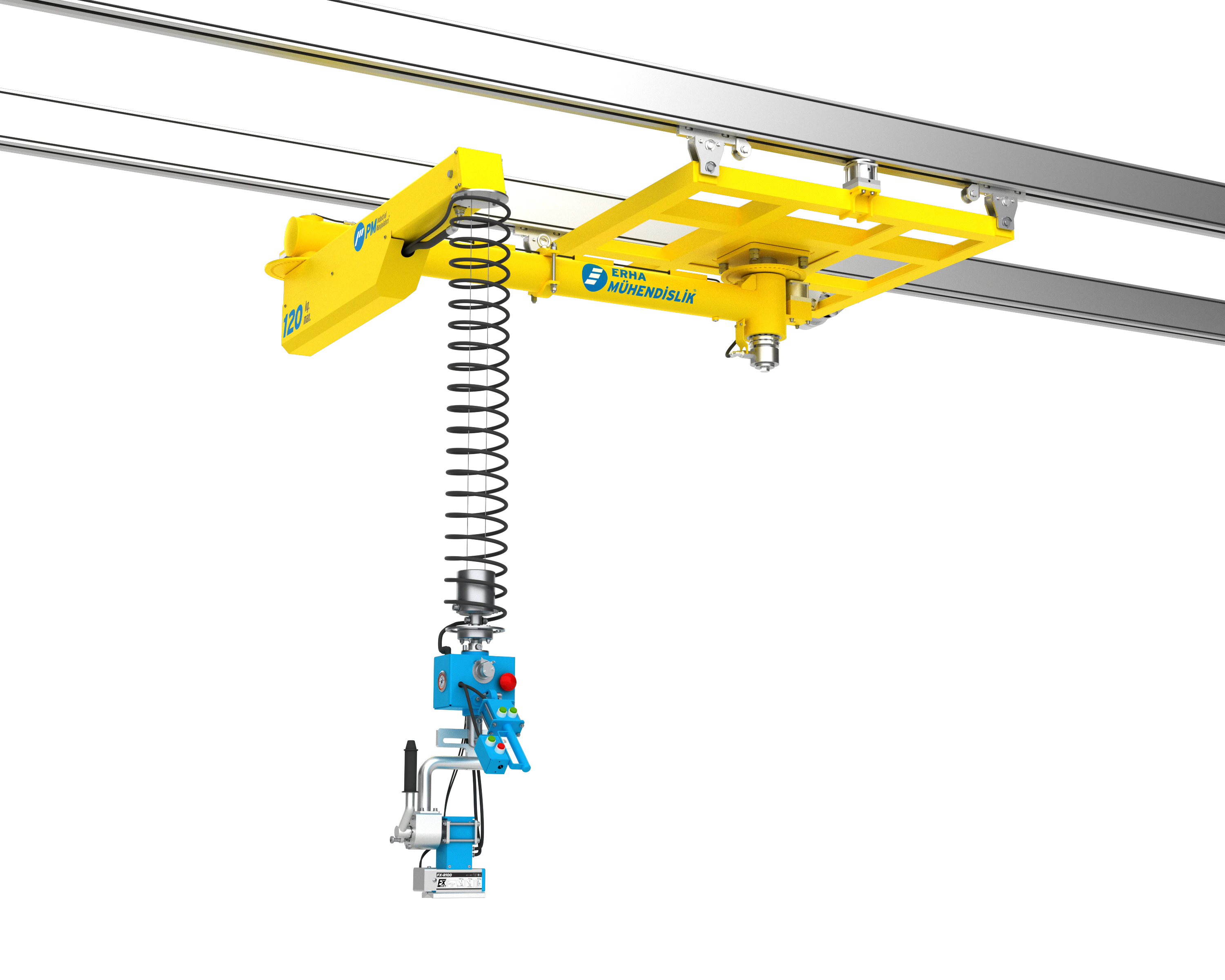

• Mounting Options: Ceiling, column, or rail system
• Energy Efficiency: High performance with low energy consumption
• Control Type: Ergonomic control handle for precise operation
• Safety: CE-certified, durable design optimized for heavy loads

Advantages

• Strong Grip with Magnetic Holding: Securely lifts and transports magnetic surface parts such as metal sheets, pipes, plates, and sheets.
• Safe and Ergonomic Operation: Reduces operator fatigue, prevents manual lifting of heavy metal parts, and enhances workplace safety.
• Speed and Precision: Lifts metal loads quickly and in a controlled manner, accelerating transport processes.
• Flexible Mounting Options: Can be integrated into ceiling, column, or rail systems.
• Low Operating Cost: Ensures long-term safe use with low energy consumption and minimal maintenance needs.

Magnetful is a pneumatic manipulator that makes the handling of magnetic surface loads safe and efficient in metal processing and heavy industry. Choose our Magnetful model to accelerate your production processes and enhance workplace safety!

For more information, contact us!

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber
